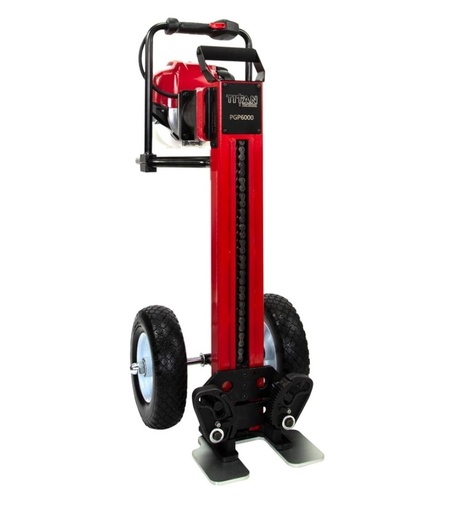

CODE: TITAN-PP-PGP6000-STK
ENGINE TYPE: 4-stroke, single cylinder (OHV), air cooled
CYLINDERAGE: 47.9 CC
IGNITION: CDI – electronic
CARBURETOR: Diaphragm
POWER: 1.6 Kw – 2.2 H.P
IDLE: 3000 – 3400 rpm (MAX 7,000 rpm)
FUEL: Regular gasoline
LUBRICATION: Vaporization
TANK CAPACITY: 0.63 L
OIL PAN: 130c.c
NET WEIGHT: 52 Kg
INCLUDES: 4 Sets of Quick Change Forged Steel Jaws, 1 Forked Tent Stake Adapter

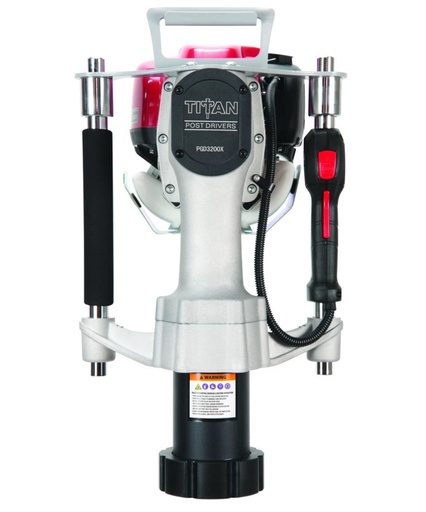

CODE: TITAN-PGD3200X-XSERIES

A powerful and portable commercial duty post driver. Powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty threaded steel barrel accommodates up to 3 ⅛” diameter post, pipe, rod, or stake. The spin barrel cap offers quick OFF/ON for secure adapter sleeve changes. Included is a 2 ½” solid industrial grade poly adapter sleeve. Additional adapter sleeves are available in ½”, ¾”, 1″, 1 ¾”, 2″ & 2¼” sizes. Choose the correct sleeve based on size of post, pipe, rod, or stake you will be driving for optimal performance. No fuel mixture is required. Use premium gas for superior performance.

This post driver is 100% self-contained, easy to lift, move, and carry. No hoses or compressors are required. It drives posts in half the time with less physical effort than with a manual driver. Assembled and serviced in the USA.

Comes complete with a sturdy, poly carrying case; engine oil; extra lube, 2 ½” adapter sleeve; and tool kit.

X Series – commercial duty driver
Self-Contained, powerful, and portable, 45 lbs driver
Honda GX35 1.3 hp, 4-stroke engine
Heavy Duty, threaded barrel
Comes with 2 ½” adapter sleeve (solid industrial grade poly)
X Series allows customized handle kits
Accommodates material up to a maximum of 3 ⅛” diameter.

CODE : TBM-ST-SR-1
APPLICATION : ¼”, 3/8” mini, .325”, 3/8”, .404”
INCLUDED ACCESORIES : 1 spinner handle, 1 take-up handle for 3/8" and lower pitch, 1 take-up handle for .404", 1 Anvil (A) for 3/8" & .404" pitch, 1 Anvill (B) for 1/4", 3/8" mini, .325" pitch.
REMARKS : Universal chainsaw bench chain riveter. Set of high quality accessories that allows consistent rivet spins and minimizes risk of chain breakage.

CODE : TBM-ST-CB-1
APPLICATION : ¼”, 3/8” LP, .325”, 3/8”, .404”
INCLUDED ACCESORIES : 1 handle with locking rivet, 2 standard punch (.404", 3/8"), 1 5-slots Anvil for 1/4", 3/8" mini, .325", 3/8" or . 404".), 1 Bristol wrench.
REMARKS : Universal chainsaw bench chain breaker. Set of high quality accessories that allows to punch out
any 1/4", 3/8" mini, .325", 3/8", or .404" pitch saw chain rivet.

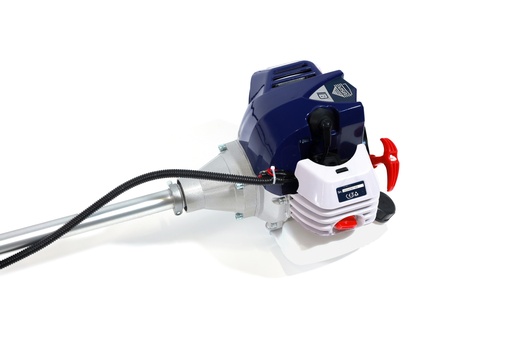

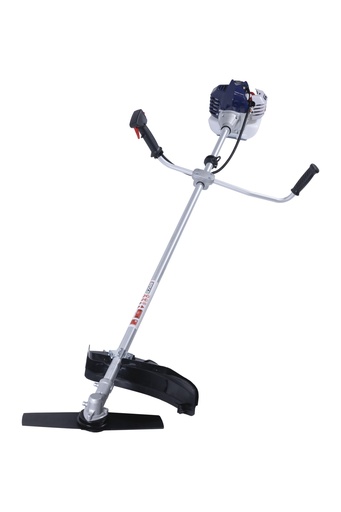

CODE : TBM-BC-2S427-17HP
ENGINE : 2 strokes, single piston, cooled by air
DISPLACEMENT : 42.7 CC
IGNITION : CDI – electronic
CARBURATOR : Diaphragm
POWER : 1.2 Kw – 2 H.P
IDLE : 2800 – 3000 rpm (MAX 6.500 rpm)
FUEL MIX : 25 (Gas) : 1 (2 strokes Oil)
POLE : Diameter: 28mm / Lenght : 150 cm
HANDLE : Diameter: 19mm / Thickness : 1.2 mm
NET WEIGHT : 5.7 Kg
NOISE : 110 Db
ACCESORIES INCLUDED : 1 Blade, Harnes, Trimmer Head, Tool Kit, User Manual
REMARKS : Lightweight brushcutter, ideal for intensive use, as well as compact giving a soft feeling due to its low vibration and noise; In addition to offering great power with low fuel consumption, it is the ideal tool for contractors.

CODE : TBM-BC-2S580-35HPGB24
ENGINE : 2 strokes, single piston, cooled by air
DISPLACEMENT : 58 c.c.
IGNITION : CDI – electronic
CARBURATOR : Diaphragm
POWER : 2.6 Kw – 3.5 H.P
IDLE : 3000– 3300 rpm (MAX 12.500 rpm)
FUEL MIX : 40 (Gas) : 1 (2 strokes Oil)
FUEL : 450ml
OIL : 260ml
GUIDEBAR : Sprocket Tip 24" / 60cm
RIM : .325"
NET WEIGHT : 5.2 Kg
ACCESORIES INCLUDED : 1 GuideBar, Tool Kit, User Manual
REMARKS : High performance and durable chainsaw, can be equipped with ES-starter for your options. New scavenging engine ensures extreme power running, also meets low emission standard. Well suited for various usages, the farms, landscapes and crafts. 200h level

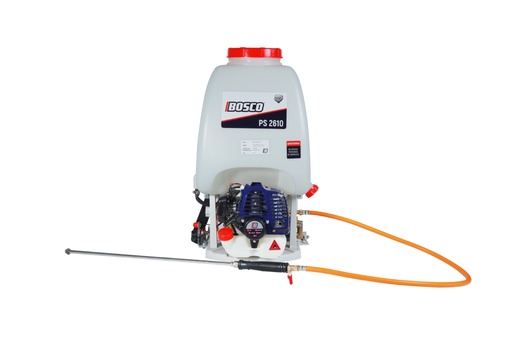

CÓDIGO: TBM-PS-2S260-10HP
TIPO DE MOTOR: TU26
CILINDRADA: 26.0CC
MEZCLA DE COMBUSTIBLE: 25 (gasolina corriente#90) : 1 (aceite dos tiempos)
VELOCIDAD MÁXIMA: 6.500rpm
RALENTÍ: 1.600 ± 200 rpm
POTENCIA MAXIMA: 0,75kW/ 1.0HP 6.500 rpm
CARBURADOR: Diafragma
ENCENDIDO: CDI (electrónico)
SUCCIÓN (L/min): 7,1 L/min
PRESIÓN NORMAL DE LA OPERACIÓN: 1.4 Mpa
CAPACIDAD DEL TANQUE: 25 L
CAPACIDAD TANQUE DE COMBUSTIBLE: 0,6 L
PESO (sin accesorios): 9.2KG
INCLUYE:

Nota: La PS-2610 es un potente atomizador a motor universal de gran alcance y fácil manejo. Hecho para la aspersión de productos químicos líquidos, en cultivos, frutales y huertas. Viene con un depósito de líquidos de 25 L, indicador de nivel de llenado, dosificador en la boquilla y tres rejillas deflectoras diferentes.

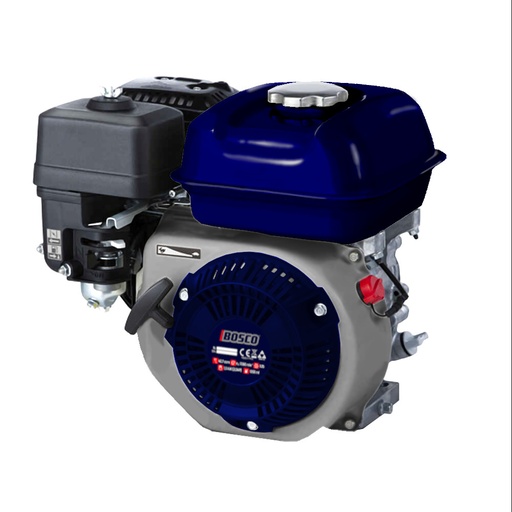

CODE: TBM-EN-4S196-65HPTSW3416UNF
ENGINE: 168FB(D) / G200F(D)
ENGINE TYPE: 4-stroke, single cylinder, forced air, overhead valves
DISPLACEMENT/STROKE: 196 cc / 68x54mm
IGNITION: Transistorized magneto
POWER: 4.8Kw / 6.5HP / 3600 rpm
IDLE: 1400 rpm ±150
MAXIMUM TORQUE: 12.4 N*m / 2500 rpm
SPEED FLUCTUATION RANGE ≤ 10%
COMPRESSION RATIO: 8.5 : 1
FUEL CONSUMPTION: ≤ 395 g/Kw*h
VALVE CLEARANCE (COLD): Intake: 0.125 ± 0.025, Exhaust: 0.175 ± 0.025
NET WEIGHT: 9.2 kg
NOISE: 70 dB

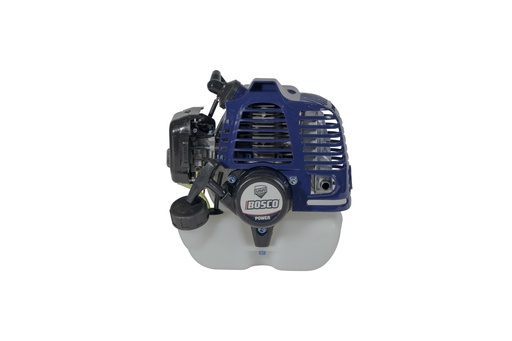

CODE: TBM-PE-2S260-10HP
MOTOR TYPE: TU26
DISPLACEMENT: 26.0CC
FUEL MIXTURE: 25 (gasolina corriente#90) : 1 (aceite dos tiempos)
MAX SPEED: 6.500rpm
IDLE: 1.600 ± 200 rpm
MAXIMUM POWER: 0,75kW/ 1.0HP 6.500 rpm
CARBURATOR: Diafragma
IGNITION: CDI (electrónico)
FUEL TANK CAPACITY: 0,6 L
WEIGHT : 2,4Kg
