CODE: TBC-CSC-32AK5SC-25RL
PITCH : .325”
GAUGE : 1.5mm (0.58")
CUTTER: Semi-Chisel
SHARPENING ANGLE : 35°
SAFETY : Anti KickBack Bumper Drive Link
REEL LENGHT : 25 ft – 7.6 m
CUTTER / REEL : 232
DRIVELINKS / REEL : 464
REMARK: Optimum resistance to chipping and easy to sharpen. Its guide is designed with a safety guard and also stamped with extra lubrication reservoir, giving it great security and greater durability in addition to taking care of your guidebar.

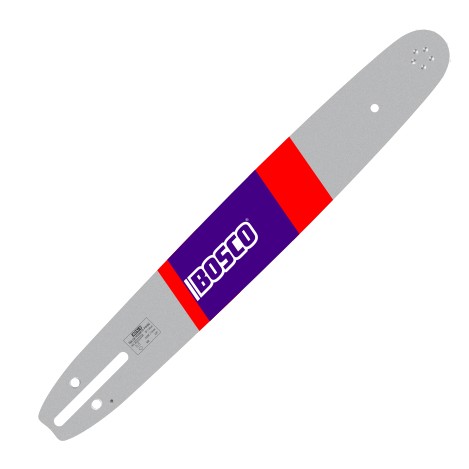

CODE : TBA-GB-16338RT11-POH82
LENGTH : 16” – 40cm
GAUGE : 0.50” - 1.3 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 60
SPROCKET NOSE # THEET : 11
MOUNTING : POH82– Width (.322"- 8.2mm) - Husqvarna® HLN-250 Oregón K095/A095
APPROVED TO MACHINES:
Husqvarna® 51, 55, 55 Rancher, 57, 254, 254XP, 257, 261, 262, 262XP, 357XP, 357XPG, 359, 359 E-Tech, 455, 455 Rancher, 455e Rancher, 460, 460 Rancher, 543XP, 543XPG, 555, 560XP, 560XPG

338XPT, 339XP, 336, 362, 362XP

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical with 4 rivets, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

CODE : TBC-TL-SR-33458
WEIGHT : 10 Lb
LENGHT : 458 m.
NYLON DIAMETER : 3.3 mm
SHAPE : Round
NOTE : Durable cut nylon, does not deflecate. Ideal for professional contractors in the maintenance of meadows in residences.

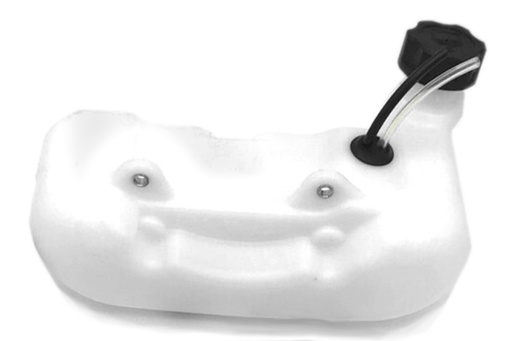

CODE: TB-SPBC-CG2431B-E48
PURPOSE: It is a safe container for flammable liquids, which is part of the engine system, and in which fuel is stored
Plastic material
SIZE: 220mm*75mm*12.5mm
CAPACITY:(0.9L)

CODE : TBHT-SF-6B1-TP
LENGHT : 6” – 152mm
SIDES : 12X12
REMARKS : Triangular file with cut on three faces. Fast and smooth finish of sharpening. Bi-material handle for better guidance of the file and better transmission of force

CODE: TBC-CSC-38LPAK3SC-100RL
PITCH : 3/8”
GAUGE : 1.3mm (0.50")
CUTTER: Semi-Chisel mini (Low Profile)
SHARPENING ANGLE : 30°
SAFETY : Bumper Tie Strap / Low Profile Ramped Depth Gauge
REEL LENGHT : 100 ft – 30.5 m
CUTTER / REEL : 816
DRIVE LINKS / REEL : 1632
REMARK: The fact that it is light and resistant to dents, in addition to having ramped depth gauge, makes it very safe and easy to maneuver; The preferred by occasional users. Its guide with extra lubrication stamping reservoir gives it greater durability, in addition to taking care of your sword.

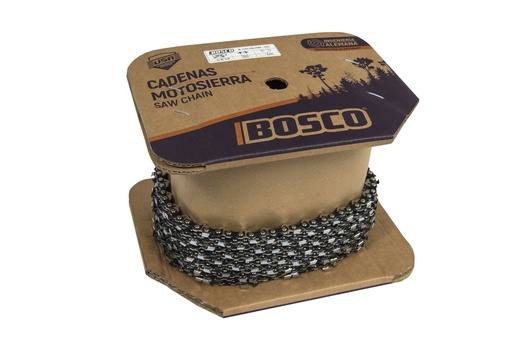

CODIGO : TBC-CSC-40R6C-100RL
PITCH : .404”
GAUGE : 1.6mm (0.63")
CUTTER : Full Chisel
SHARPENING ANGLE : 35°
SAFETY : Fast
REEL LENGHT : 100 ft– 30.5 mt
CUTTER / REEL: 742
DRIVELINK / ROLLO : 1488
REMARK :
Full Chisel give maximum performance, ideal for large logs where speed in cutting is required. Its guide designed with extra lubrication reservoir gives you great durability in addition to taking care of your guidebar.

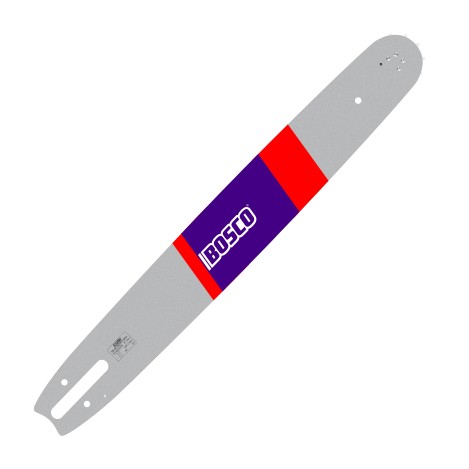

CODE : TBA-GB-16638RT11-QR121
LENGTH : 16” – 40cm
GAUGE : 0.63” - 1.6 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 60
SPROCKET NOSE # THEET : 11
MOUNTING : QR121 – Width (.475” / 12.1mm) - Stihl® 3003 Oregón D0025
APPROVED TO MACHINES:
Stihl®026, 026 Pro, 028, 028 Super, 029, 030, 031, 032, 034, 034 Super, 036, 036P, 036 QS, 041, MS 260, MS 260 Pro, MS 261, MS 261 C-M, MS 261 C-Q, MS 261 C-MQ, MS 290, MS 310, MS 341, MS 360, MS 360 C, MS 360 Pro, MS 360 Q-S, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 362, MS 362 R, MS 362 C-M

039, 048, MS 362, MS 362 R, MS 362 C-M, MS 390, MS 391

038, 038 Super Magnum, 042, 044, 044M, 045, 046, 046M, MS 362, MS 362 R, MS 362 C-M, MS 400 C-M, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 441 C-M,
MS 441 C-MQ, MS 441 R C-M, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, MS 462 R, MS 462 R C-M

056, 064, 066, 066 Magnum, MS 500i, MS 500i R, MS 650, MS 660, MS 661 C-M, MS 661 RC-M, MS 661 Magnum, MS 661 Magnum, MS 661 C-M Magnum, MS R C-M Magnum

REMARKS: For professionals of reforestation companies, such as the loggers. It is lightweight, portable and durable. The 4 rivet sprocket system in the tip offers longer life and superior performance. Thanks to the better adjustment of the chain, reduce rail wear, which results in a more precise cut. Its low radius decreases the fatigue of the worker and allows him to react better during the working day. Recommended for saw sizes 3.8 cu.in. (61cc) and smaller. Available in lengths 15” - 20”

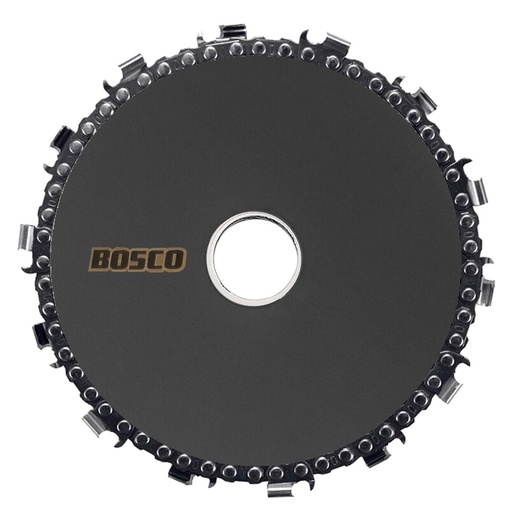

Designed for quick and easy cutting of dense shrubs, small trees and heavy underbrush for activities such as lopping, pruning, logging and open space maintenance.
Ideal as an accessory for Mowers with a cylinder capacity greater than 30cc
Can also be used on circular saws

CODE: TBC-CSC-32AK5C-100RL
PITCH : .325”
GAUGE : 1.5mm (0.58")
CUTTER: Chisel
SHARPENING ANGLE : 35°
SAFETY : Anti KickBack Bumper Drive Link
REEL LENGHT : 100 ft – 30.5 m
CUTTER / REEL : 924
DRIVE LINKS / REEL : 1848
REMARK: Quick and easy to sharpen, it has been designed to make the most of the power of today's machines. Its guide with a safety guard and also with extra lubrication reservoir, gives it great security and in addition takes care of your guidebar.

CODE: TB-SPBC-CG2431B-S51
PURPOSE: To dampen vibration generated by machine operation.
MATERIAL: Rubber
SIZE: diameter: 43mm

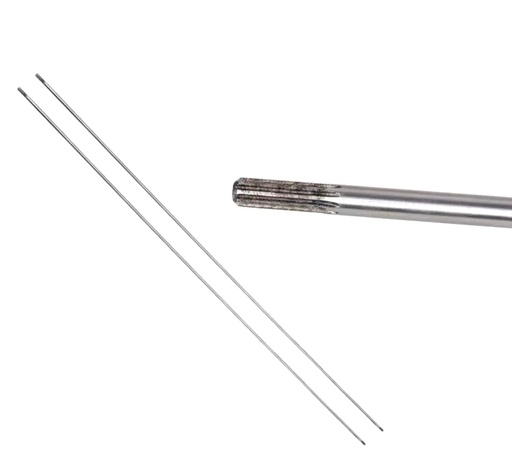

CODE: TB-SPBC-CG2431B-S17
PURPOSE: Transmits engine power to the transmission that moves the cutting pieces
MATERIAL: 40Cr
SIZE: length: 1530 mm - body diameter: 8 mm - star diameter: 6.8 mm

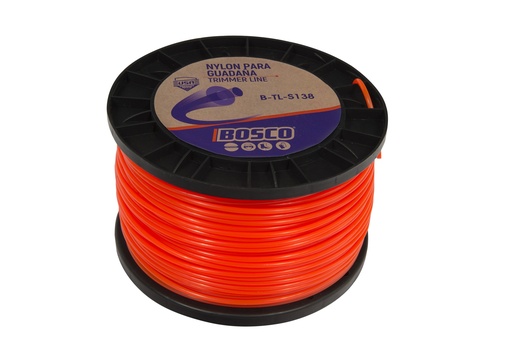

CODE : TBC-TL-SS-33209
WEIGHT : 5 Lb
LENGHT : 209 m.
NYLON DIAMETER : 3.3 mm
SHAPE : Square
NOTE : Durable cut nylon, does not deflecate. Ideal for professional contractors in the maintenance of meadows in residences.

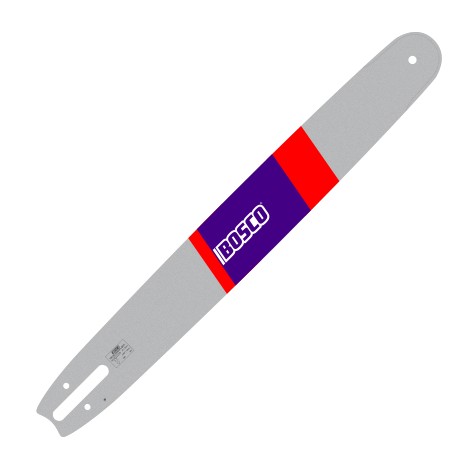

CODE : TBA-GB-36640DPL-QR121
LENGTH : 36” – 90cm
GAUGE : 0.63” - 1.6 mm
PITCH : .375"
DRIVE LINKS (E) : 104
NOSE : HARD
MOUNTING : QR121 – Width (.475” / 12.1mm) - Stihl® 3003 Oregón D0025
APPROVED TO MACHINES:
Stihl®056, 064, 066, 066 Magnum, MS 500i, MS 500i R, MS 650, MS 660, MS 661 C-M, MS 661 RC-M, MS 661 Magnum, MS 661 Magnum, MS 661 C-M Magnum, MS R C-M Magnum

REMARKS: The top of the range, for professional users in reforesting machines that work in the most demanding environments for long hours. The reinforced tip with Estelita 6B and the chromium-molybdenum body make our product last longer. Recommended for saw sizes 3.8 cu.in. (55.5cc) and above. Available in lengths 20” – 42”

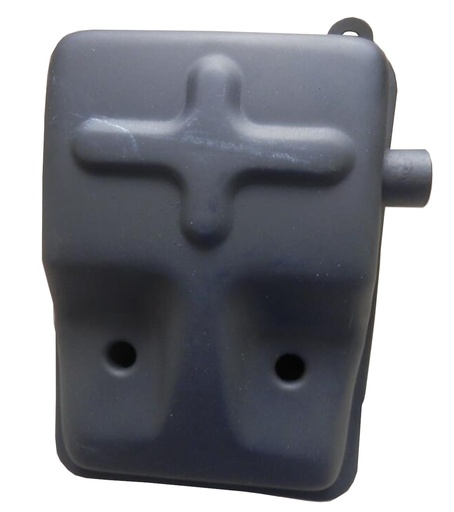

CODE: TB-SPBC-CG2431B-E37
PURPOSE: This is the part that reduces the noise emitted by the engine and is part of the engine's exhaust system
MATERIAL: Q235
SIZE: length: 8.5 cm - width: 12.3 cm - thickness: 5 cm

CODE: TB-SPBC-CG2431B-S16
PURPOSE: To cover the rolling contact surface with proper oil film to extend the life of the bearings
MATERIAL: 65Mn - rubber
SIZE: diameter 25cm

SYSTEM CODE: TB-SPBC-CG2431B-S52
PURPOSE: Improve the fit between the starter and the starter claw
MATERIAL: Aluminum
SIZE: length: 9.3 cm - width: 9.5 cm - thickness: 3.3 cm

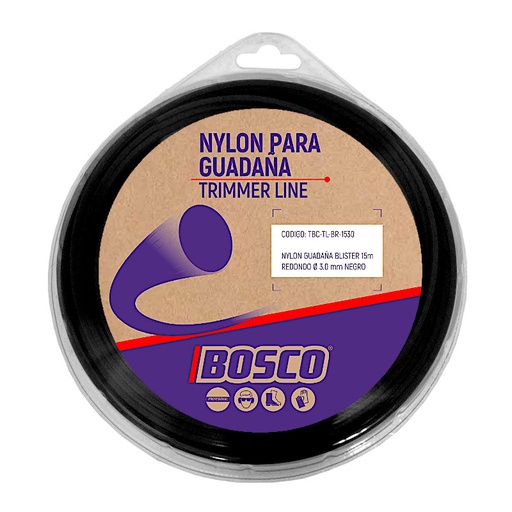

CODE : TBC-TL-BR-3015
LENGHT : 15 m.
NYLON DIAMETER : 3.0 mm
SHAPE : Round
NOTE : Durable cut nylon, does not deflecate. Ideal for professional contractors in the maintenance of meadows in residences.

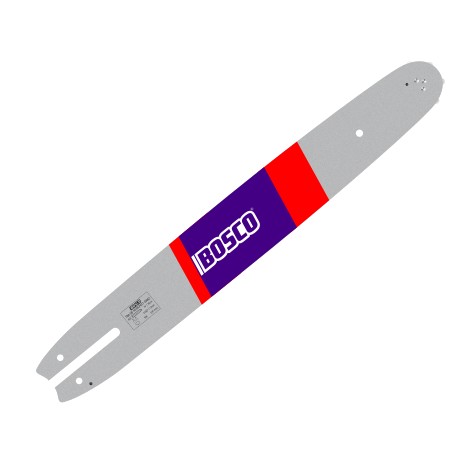

CODE : TBA-GB-14138LPRT7-SW82
LENGTH : 14” – 35cm
GAUGE : 0.43” - 1.1 mm
PITCH : 3/8" mini (LP: Low Profile)
DRIVE LINKS (E) : 50
SPROCKET NOSE # THEET : 7
MOUNTING : SW82– Width (.322"- 8.2mm) - Stihl® 3005 - Oregon® A074/K074
APPROVED TO MACHINES:
Stihl®CODE : TBA-GB-14138LPRT6-SW82
LENGTH : 14” – 35cm
GAUGE : 0.43” - 1.1 mm
PITCH : 3/8" mini (LP: Low Profile)
DRIVE LINKS (E) : 50
SPROCKET NOSE # THEET : 6
MOUNTING : SW 82– Ancho (.322"- 8.2mm) - Stihl 3003 - Oregón A074
APPROVED TO MACHINES:
Stihl®HT70, HT75, HT100, HT101, H131, HTE60, 017, 019T, MS190, E140, 023L, 017, 019T, MS190, E140, 023L

MSE140, MSE160, MS170, MSE170, MS171, MSE180, MS181,MSE190, MS191T, MS192, MSE210, MSE230, MS241, MS251, MS193,MSE141

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

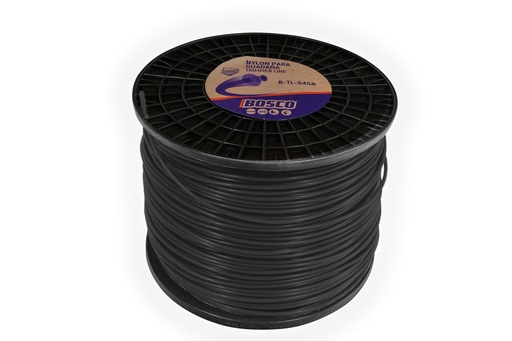

CODE : TBC-TL-SR-35407
WEIGHT : 10 Lb
LENGHT : 407 m.
NYLON DIAMETER : 3.5 mm
SHAPE : Round
NOTE : Durable cut nylon, does not deflecate. Ideal for professional contractors in the maintenance of meadows in residences.
