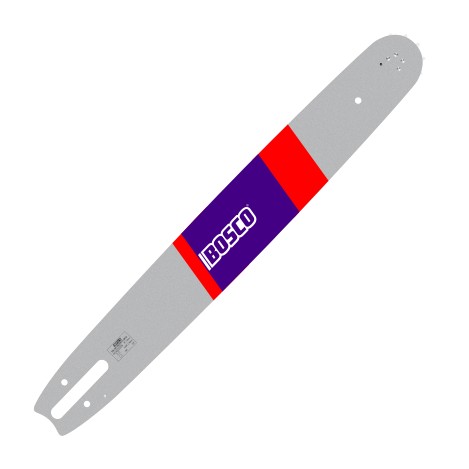

GUIDEBAR SPROCKET TIP PROFESSIONAL 3/8" (E60) - 40cm (16") - 1.6mm (0.063") S

CODE : TBA-GB-16638RT11-QR121
LENGTH : 16” – 40cm
GAUGE : 0.63” - 1.6 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 60
SPROCKET NOSE # THEET : 11
MOUNTING : QR121 – Width (.475” / 12.1mm) - Stihl® 3003 Oregón D0025
APPROVED TO MACHINES:
Stihl®026, 026 Pro, 028, 028 Super, 029, 030, 031, 032, 034, 034 Super, 036, 036P, 036 QS, 041, MS 260, MS 260 Pro, MS 261, MS 261 C-M, MS 261 C-Q, MS 261 C-MQ, MS 290, MS 310, MS 341, MS 360, MS 360 C, MS 360 Pro, MS 360 Q-S, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 362, MS 362 R, MS 362 C-M

039, 048, MS 362, MS 362 R, MS 362 C-M, MS 390, MS 391

038, 038 Super Magnum, 042, 044, 044M, 045, 046, 046M, MS 362, MS 362 R, MS 362 C-M, MS 400 C-M, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 441 C-M,
MS 441 C-MQ, MS 441 R C-M, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, MS 462 R, MS 462 R C-M

056, 064, 066, 066 Magnum, MS 500i, MS 500i R, MS 650, MS 660, MS 661 C-M, MS 661 RC-M, MS 661 Magnum, MS 661 Magnum, MS 661 C-M Magnum, MS R C-M Magnum

REMARKS: For professionals of reforestation companies, such as the loggers. It is lightweight, portable and durable. The 4 rivet sprocket system in the tip offers longer life and superior performance. Thanks to the better adjustment of the chain, reduce rail wear, which results in a more precise cut. Its low radius decreases the fatigue of the worker and allows him to react better during the working day. Recommended for saw sizes 3.8 cu.in. (61cc) and smaller. Available in lengths 15” - 20”
