CODE : TBC-TL-SRDL-35407
WEIGHT : 10 Lb
LENGHT : 407 m.
NYLON DIAMETER : 3.5 mm
SHAPE : Round (Double Line)
NOTE : Durable cut nylon, does not deflecate. Ideal for professional contractors in the maintenance of meadows in residences.

CODE : TBM-BC-2S545-ZMC5602
ENGINE : 2 strokes, single piston, cooled by air
DISPLACEMENT : 54.5 c.c.
IGNITION : CDI – electronic
CARBURATOR : Diaphragm
POWER : 2.6 Kw – 3.5 H.P
IDLE : 3000– 3300 rpm (MAX 12.500 rpm)
FUEL MIX : 40 (Gas) : 1 (2 strokes Oil)
FUEL : 450ml
OIL : 260ml
GUIDEBAR : Sprocket Tip 18" / 45cm
RIM : .325"
NET WEIGHT : 5.2 Kg
ACCESORIES INCLUDED : 1 GuideBar, Tool Kit, User Manual
REMARKS : High performance and durable chainsaw, can be equipped with ES-starter for your options. New scavenging engine ensures extreme power running, also meets low emission standard. Well suited for various usages, the farms, landscapes and crafts. 200h level

CODE: TBC-CSC-386SC10-100RL
PITCH : 3/8”
GAUGE : 1.6mm (0.63")
CUTTER: Semi-Chisel
SHARPENING ANGLE : 10°
SAFETY : Ramped Depth Gauge
REEL LENGHT : 100 ft – 30.5 m
CUTTER / REEL : 816
DRIVE LINKS / REEL : 1632
REMARK: Optimum resistance to chipping and easy to sharpen. ideal for work in abrasive terrain and soften finishes in cutting is required. Its guide stamped with extra lubrication reservoir, furthermore a rapmed depth gauge, give it great security and greater durability in addition to taking care of your guidebar.

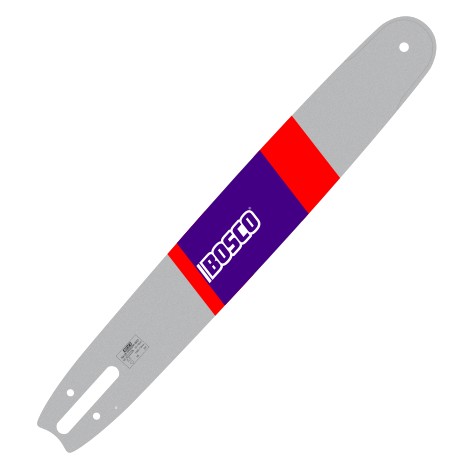

CODE : TBA-GB-28638DPM-QR121
LENGTH : 28” – 70cm
GAUGE : 0.063” - 1.6 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 92
NOSE : HARD
MOUNTING : QR121 – Width (.475” / 12.1mm) - Stihl® 3003 Oregón D0025
APPROVED TO MACHINES:
Stihl®026, 026 Pro, 028, 028 Super, 029, 030, 031, 032, 034, 034 Super, 036, 036P, 036 QS, 041, MS 260, MS 260 Pro, MS 261, MS 261 C-M, MS 261 C-Q, MS 261 C-MQ, MS 290, MS 310, MS 341, MS 360, MS 360 C, MS 360 Pro, MS 360 Q-S, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 362, MS 362 R, MS 362 C-M

E 20, E 220, MS 311, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MSE 220, MSE 250 C

039, 048, MS 362, MS 362 R, MS 362 C-M, MS 390, MS 391

038, 038 Super Magnum, 042, 044, 044M, 045, 046, 046M, MS 362, MS 362 R, MS 362 C-M, MS 400 C-M, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 441 C-M,
MS 441 C-MQ, MS 441 R C-M, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, MS 462 R, MS 462 R C-M

056, 064, 066, 066 Magnum, MS 500i, MS 500i R, MS 650, MS 660, MS 661 C-M, MS 661 RC-M, MS 661 Magnum, MS 661 Magnum, MS 661 C-M Magnum, MS R C-M Magnum

REMARKS: The top of the range, for professional users in reforesting machines that work in the most demanding environments for long hours. The reinforced tip with Estelita 6B and the chromium-molybdenum body make our product last longer. Recommended for saw sizes 3.8 cu.in. (55.5cc) and above. Available in lengths 20” – 42”

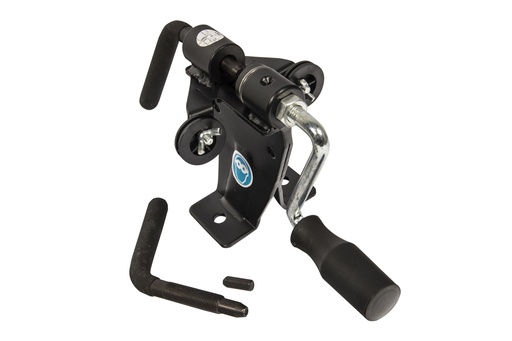

CODE : TBM-ST-SR-1
APPLICATION : ¼”, 3/8” mini, .325”, 3/8”, .404”
INCLUDED ACCESORIES : 1 spinner handle, 1 take-up handle for 3/8" and lower pitch, 1 take-up handle for .404", 1 Anvil (A) for 3/8" & .404" pitch, 1 Anvill (B) for 1/4", 3/8" mini, .325" pitch.
REMARKS : Universal chainsaw bench chain riveter. Set of high quality accessories that allows consistent rivet spins and minimizes risk of chain breakage.

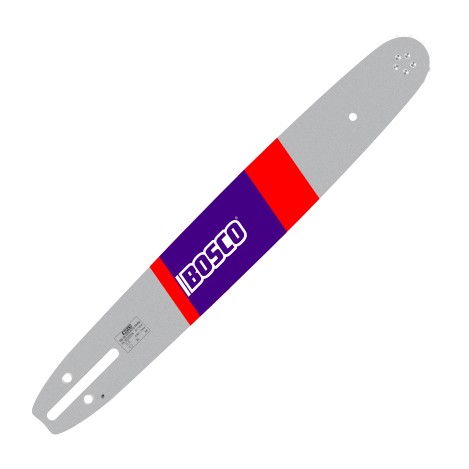

CODE : TBA-GB-20332RT12-POH82
LENGTH : 20” – 50cm
GAUGE : 0.50” - 1.3 mm
PITCH : .325"
DRIVE LINKS (E) : 78
SPROCKET NOSE # THEET : 12
MOUNTING : POH82– Width (.322"- 8.2mm) - Husqvarna® HLN-250 Oregón K095/A095
APPROVED TO MACHINES:
Husqvarna® 51, 55, 55 Rancher, 57, 254, 254XP, 257, 261, 262, 262XP, 357XP, 357XPG, 359, 359 E-Tech, 455, 455 Rancher, 455e Rancher, 460, 460 Rancher, 543XP, 543XPG, 555, 560XP, 560XPG

44, 45, 49, 50, 133, 154, 234, 238, 242, 242XP, 246, 340, 345, 346, 346XP, 346XP E-TECH, 346XPG, 350, 351, 353, 353 E-TECH, 435, 435E, 440E, 444, 445, 445E, 450, 450E,
545, 545 Mark II, 550XP, 550XP Mark II, 550XPG, 550XPG Mark II

338XPT, 339XP, 336, 362, 362XP

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

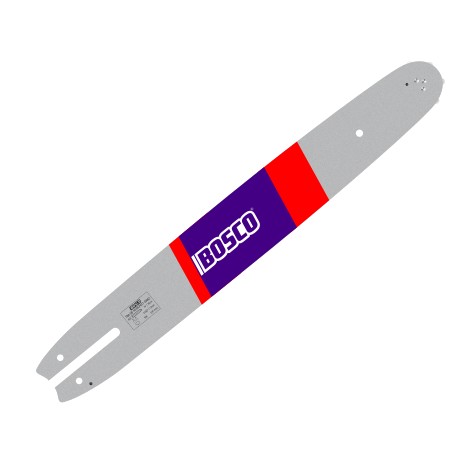

CODE : TBA-GB-16532RT11-POH82
LENGTH : 16” – 40cm
GAUGE : 0.58” - 1.5 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 60
SPROCKET NOSE # THEET : 11
MOUNTING : POH82– Width (.322"- 8.2mm) - Husqvarna® HLN-250 Oregón K095/A095
APPROVED TO MACHINES:
Husqvarna® 51, 55, 55 Rancher, 57, 254, 254XP, 257, 261, 262, 262XP, 357XP, 357XPG, 359, 359 E-Tech, 455, 455 Rancher, 455e Rancher, 460, 460 Rancher, 543XP, 543XPG, 555, 560XP, 560XPG

338XPT, 339XP, 336, 362, 362XP

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical with 4 rivets, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

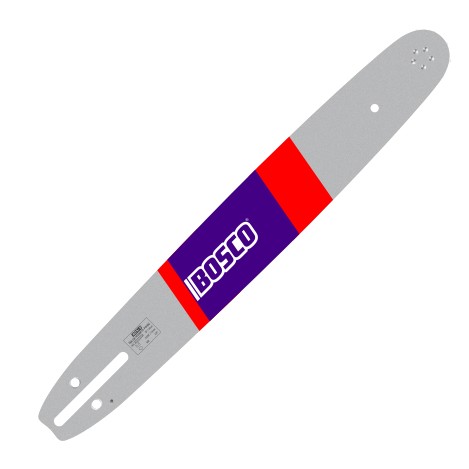

CODE : TBA-GB-18532RT11-POH82
LENGTH : 18” – 45cm
GAUGE : 0.58” - 1.5 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 64
SPROCKET NOSE # THEET : 11
MOUNTING : POH82– Width (.322"- 8.2mm) - Husqvarna® HLN-250 Oregón K095/A095
APPROVED TO MACHINES:
Husqvarna® 51, 55, 55 Rancher, 57, 254, 254XP, 257, 261, 262, 262XP, 357XP, 357XPG, 359, 359 E-Tech, 455, 455 Rancher, 455e Rancher, 460, 460 Rancher, 543XP, 543XPG, 555, 560XP, 560XPG

338XPT, 339XP, 336, 362, 362XP

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical with 4 rivets, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

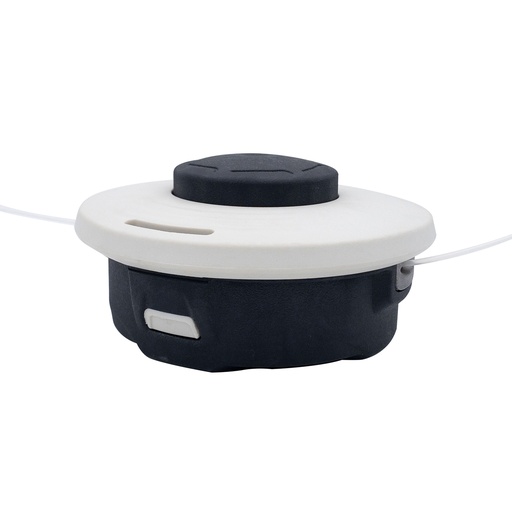

CODE : TBA-TH-A-1216

STUD M10X1.25 - M10X1.25 :
Shindaiwa C35 – C350 – B45, Kawasaki T 40 – TD48 – TH43 – TH48, Stihl FS120 – FS160, FS250

STUD M10X1.25 - M8X1.25 :
Maruyama BC430 – BC4321 – BCF4320 – BCF4321, Beaver D427 – K427 – B45000

STUD M10X1.25 – M7X1 :
Shindaiwa C320

LOCK HEX NUT M10X1.25 (mounted):
Bosco BC42.7, Mitsubishi TL430 – TL52 – TL33, Echo 3605 – 4300 – 4605

LOCK HEX NUT M12X1.5 :
Stihl FS220 – FS250R – FS280 – FS350 – FS450

LOCK HEX NUT M12X1.75 :
Husqvarna 143R-II

REMARKS:
4209 Do not require any disassembly of the head to load with Nylon. Made of durable and robust heavy-duty plastic, these trimmer heads are ideal for Heavy Duty trimming applications. They are compatible with thick lines and feature improved line release while trimming by simply tapping the head on the ground. 4209 Heads are compatible with most straight or curved shaft trimmers thanks to Stud and Lock Hex Nut set

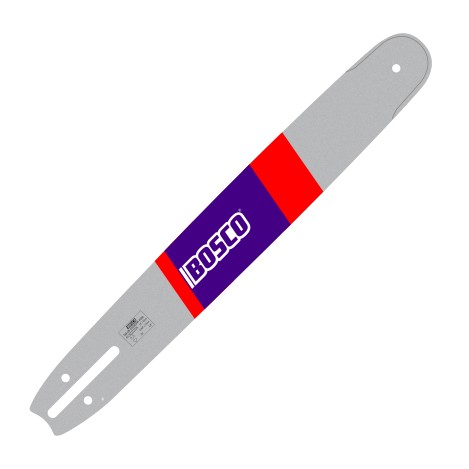

CODE : TBA-GB-20538DPM-HV90
LENGTH : 20” – 50cm
GAUGE : 0.58” - 1.5 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 72
NOSE : HARD
MOUNTING : HV90– Width (.355"- 9.0mm) - Husqvarna® HT388 Oregón D009
APPROVED TO MACHINES:
Husqvarna® 61, 65, 562, 565, 160, 162, 260, 465 Rancher

362, 362XP

L Series: 66, 70, 77; 181, 185, 266, 268, 272, 281, 285, 288, 288XP Lite, 298, 365, 371, 372, 372XP, 372XPG, 372XPW, 380, 385, 385XP, 385XPG, 385XPW, 390XP, 390XPG, 390XPW, 394, 394XP, 395, 395XP, 395XPG, 395XPW, 480, 565, 570, 572XP, 572XPG, 575XP, 575XPG, 575XPW, 576XP, 576XP Auto Tune, 576xpg, 576xpw, 1100, 2100, 2101,
3120, 3120XP, Jungle 3120

REMARKS: The top of the range, for professional users in reforesting machines that work in the most demanding environments for long hours. The reinforced tip with Estelita 6B and the chromium-molybdenum body make our product last longer. Recommended for saw sizes 3.8 cu.in. (55.5cc) and above. Available in lengths 20” – 42”

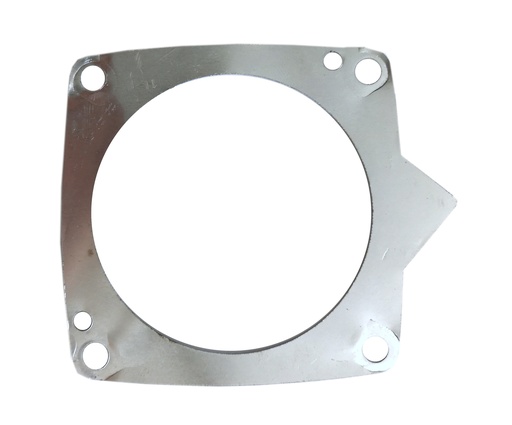

CODE: TB-SPBC-CG2431B-E24
PURPOSE: Improve the fit between the starter and the starter claw
MATERIAL: Aluminum
SIZE: length: 9.3 cm - width: 9.5 cm - thickness: 3.3 cm

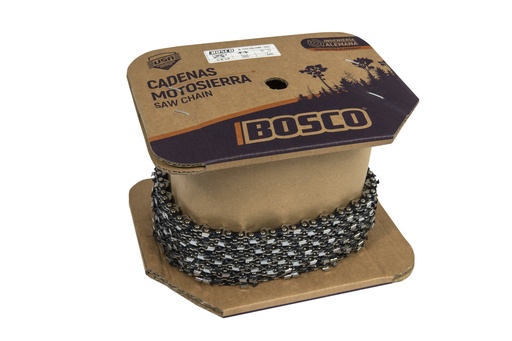

CODE: TBC-CSC-38R5SC-25RL
PITCH : 3/8”
GAUGE : 1.5mm (0.58")
CUTTER: Semi-Chisel
SHARPENING ANGLE : 25°
SAFETY : Ramped Depth Gauge
REEL LENGHT : 25 ft – 7.6 m
CUTTER / REEL : 204
DRIVE LINKS / REEL : 408
REMARK: Optimum resistance to chipping and easy to sharpen. ideal for work in abrasive terrain where fast cutting is required. Its guide stamped with extra lubrication reservoir, furthermore a rapmed depth gauge, give it great security and greater durability in addition to taking care of your guidebar.

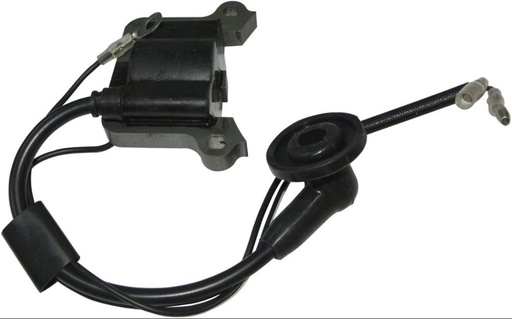

CODE: TB-SPBC-CG2431B-E11
PURPOSE: The ignition coil is an electromagnetic induction device or inductor, which is part of the ignition of an internal combustion engine
MATERIAL: Metal and rubber
SIZE: length: 6.1 cm - thickness: 3.3 cm

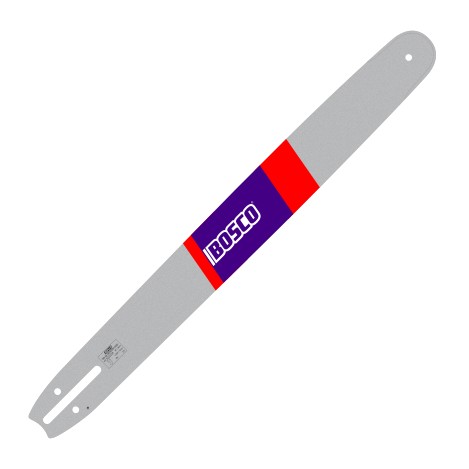

CODE : TBA-GB-36640DPL-HV90
LENGTH : 36” – 90cm
GAUGE : 0.63” - 1.6 mm
PITCH : .404"
DRIVE LINKS (E) : 104
NOSE : HARD
MOUNTING : HV90– Width (.355"- 9.0mm) - Husqvarna® HT388 Oregón D009
APPROVED TO MACHINES:
Husqvarna® L Series: 66, 70, 77; 181, 185, 266, 268, 272, 281, 285, 288, 288XP Lite, 298, 365, 371, 372, 372XP, 372XPG, 372XPW, 380, 385, 385XP, 385XPG, 385XPW, 390XP, 390XPG, 390XPW, 394, 394XP, 395, 395XP, 395XPG, 395XPW, 480, 565, 570, 572XP, 572XPG, 575XP, 575XPG, 575XPW, 576XP, 576XP Auto Tune, 576xpg, 576xpw, 1100, 2100, 2101,
3120, 3120XP, Jungle 3120

REMARKS: The top of the range, for professional users in reforesting machines that work in the most demanding environments for long hours. The reinforced tip with Estelita 6B and the chromium-molybdenum body make our product last longer. Recommended for saw sizes 3.8 cu.in. (55.5cc) and above. Available in lengths 20” – 42”

CODE: TBC-CSC-38R6SC-100RL
PITCH : 3/8”
GAUGE : 1.6mm (0.63")
CUTTER: Semi-Chisel
SHARPENING ANGLE : 25°
SAFETY : Ramped Depth Gauge
REEL LENGHT : 100 ft – 30.5 m
CUTTER / REEL : 816
DRIVE LINKS / REEL : 1632
REMARK: Optimum resistance to chipping and easy to sharpen. ideal for work in abrasive terrain where fast cutting is required. Its guide stamped with extra lubrication reservoir, furthermore a rapmed depth gauge, give it great security and greater durability in addition to taking care of your guidebar.

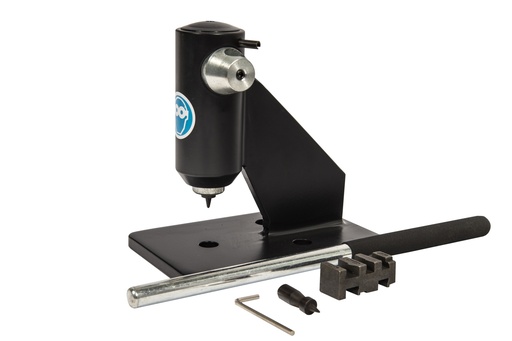

CODE : TBM-ST-CB-1
APPLICATION : ¼”, 3/8” LP, .325”, 3/8”, .404”
INCLUDED ACCESORIES : 1 handle with locking rivet, 2 standard punch (.404", 3/8"), 1 5-slots Anvil for 1/4", 3/8" mini, .325", 3/8" or . 404".), 1 Bristol wrench.
REMARKS : Universal chainsaw bench chain breaker. Set of high quality accessories that allows to punch out
any 1/4", 3/8" mini, .325", 3/8", or .404" pitch saw chain rivet.

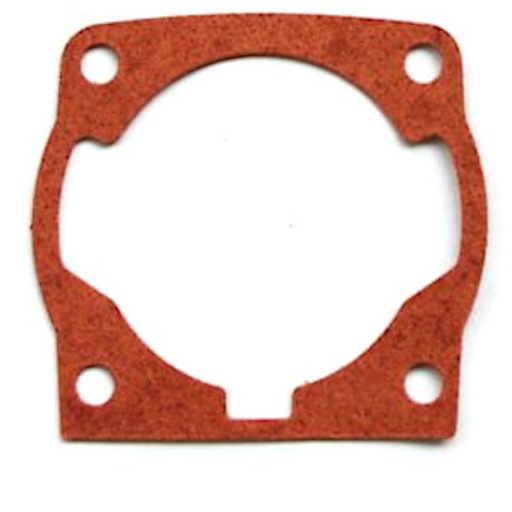

CODE: TB-SPBC-CG2431B-E47
PURPOSE: Provide sealing of combustion gases, lubrication oil and coolant moment
MATERIAL: Oil resistant cardboard
SIZE: thickness: 0.5cm

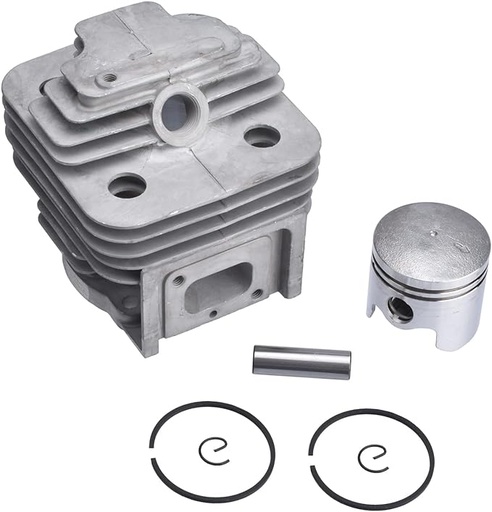

CODE: TB-SPBC-CG2431B-E50
PURPOSE: Achieve starting, power and acceleration required, linked all in the same process
MATERIAL: Aluminum and steel.
PARTS INCLUDED: 1 x Cylinder Block, 1 x Piston, 1 x Gudgeon Pin, 2 x Ring, 2 x Clip

CCODE: TBC-CSC-38LPAK3SC-25RL
PITCH : 3/8”
GAUGE : 1.3mm (0.50")
CUTTER: Semi-Chisel mini (Low Profile)
SHARPENING ANGLE : 30°
SAFETY : Bumper Tie Strap / Low Profile Rampes Depth Gauge
REEL LENGHT : 25 ft – 7.6 m
CUTTER / REEL : 204
DRIVE LINKS / REEL : 408
REMARK: The fact that it is light and resistant to dents, in addition to having ramped depth gauge, makes it very safe and easy to maneuver; The preferred by occasional users. Its guide with extra lubrication stamping reservoir gives it greater durability, in addition to taking care of your sword.

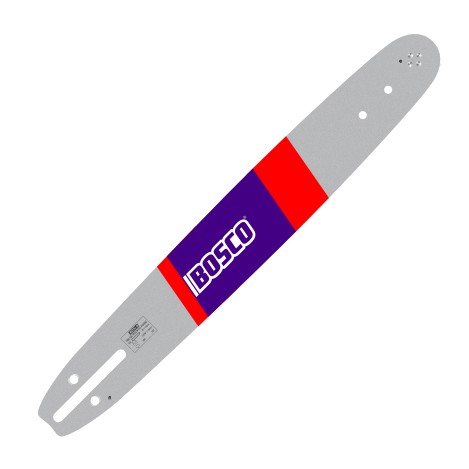

CODE : TBA-GB-18332RT10-POH82
LENGTH : 18” – 45cm
GAUGE : 0.50” - 1.3 mm
PITCH : .325"
DRIVE LINKS (E) : 72
SPROCKET NOSE # THEET : 10
MOUNTING : POH82– Width (.322"- 8.2mm) - Husqvarna® HLN-250 Oregón K095/A095
APPROVED TO MACHINES:
Husqvarna® 36, 41, 120 MARK II, 135, 135 MARK II, 136, 141, 235, 235E, 236, 240, 240E

51, 55, 55 Rancher, 57, 254, 254XP, 257, 261, 262, 262XP, 357XP, 357XPG, 359, 359 E-Tech, 455, 455 Rancher, 455e Rancher, 460, 460 Rancher, 543XP, 543XPG, 555, 560XP, 560XPG

44, 45, 49, 50, 133, 154, 234, 238, 242, 242XP, 246, 340, 345, 346, 346XP, 346XP E-TECH, 346XPG, 350, 351, 353, 353 E-TECH, 435, 435E, 440E, 444, 445, 445E, 450, 450E,
545, 545 Mark II, 550XP, 550XP Mark II, 550XPG, 550XPG Mark II

338XPT, 339XP, 336, 362, 362XP

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.
