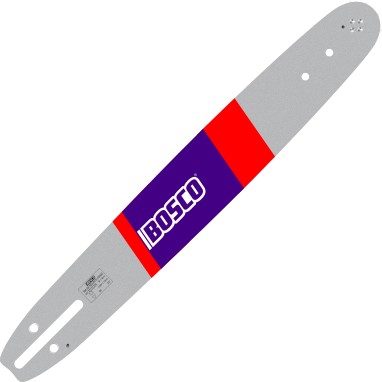

CODE : TBA-GB-12238LPRT9-POH82
LENGTH : 12” – 30cm
GAUGE : 0.050” - 1.3 mm
PITCH : 3/8"
DRIVE LINKS (E) : 45
SPROCKET NOSE # THEET : 9
MOUNTING : POH82– Width (.322"- 8.2mm) - Husqvarna® HLN-250 Oregón K095/A095
APPROVED TO MACHINES:
Husqvarna® 51, 55, 55 Rancher, 57, 254, 254XP, 257, 261, 262, 262XP, 357XP, 357XPG, 359, 359 E-Tech, 455, 455 Rancher, 455e Rancher, 460, 460 Rancher, 543XP, 543XPG, 555, 560XP, 560XPG

44, 45, 49, 50, 133, 154, 234, 238, 242, 242XP, 246, 340, 345, 346, 346XP, 346XP E-TECH, 346XPG, 350, 351, 353, 353 E-TECH, 435, 435E, 440E, 444, 445, 445E, 450, 450E,
545, 545 Mark II, 550XP, 550XP Mark II, 550XPG, 550XPG Mark II

338XPT, 339XP, 336, 362, 362XP

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

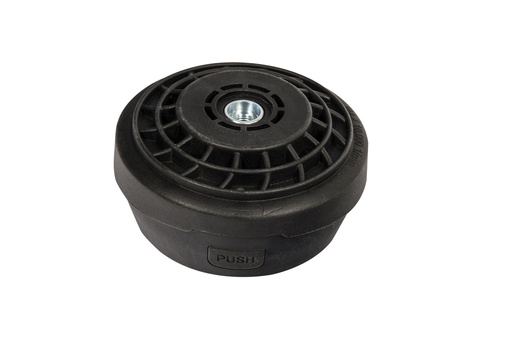

CODE : TBA-TH-A-1216U

STUD M10X1.25 - M10X1.25 : Shindaiwa C35 – C350 – B45, Kawasaki T 40 – TD48 – TH43 – TH48, Stihl FS120 – FS160, FS250

STUD M10X1.25 - M8X1.25 : Maruyama BC430 – BC4321 – BCF4320 – BCF4321, Beaver D427 – K427 – B45000

STUD M10X1.25 – M7X1 : Shindaiwa C320

LOCK HEX NUT M10X1.25 : Bosco BC42.7, Mitsubishi TL430 – TL52 – TL33, Echo 3605 – 4300 – 4605

LOCK HEX NUT M12X1.5 : Stihl FS220 – FS250R – FS280 – FS350 – FS450

LOCK HEX NUT M12X1.75 : Husqvarna 143R-II

REMARK : 1216 Universal series its comfortable and fast to work, it expels the necessary thread to continue with the cutting work. The metal button on the base makes it sturdy and durable. It comes with adapter kit for the vast majority of machines on the market.

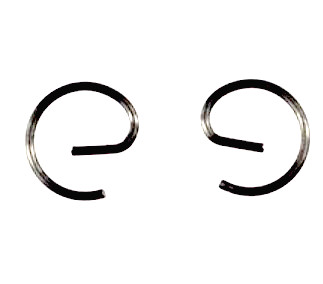

CODE: TB-SPBC-CG2431B-E42
PURPOSE: Lock the movement of the piston pin
MATERIAL: 65Mn
SIZE: diameter: 10mm

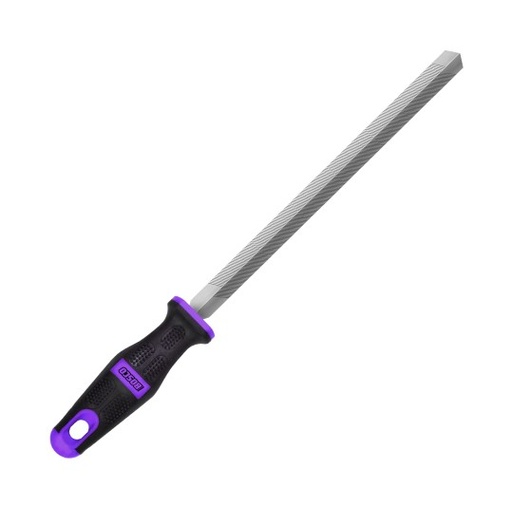

CCODE: TBHT-SF-6B1-TP
LENGTH: 6” – 152mm
SECTION: 12X12
REMARKS: Triangular file with cut on three faces. Fast and smooth finish of sharpening. Bi-material handle for better guidance of the file and better transmission of force

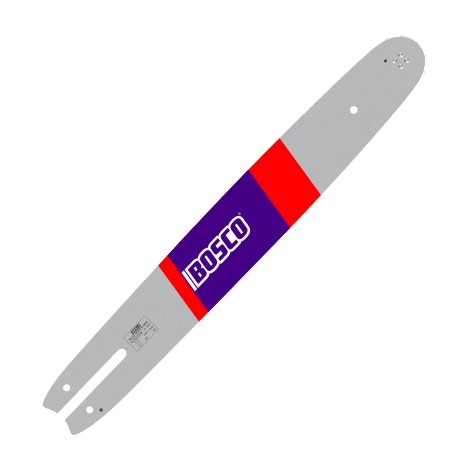

CODE: TBA-GB-18632RT10-SW82
LENGTH: 18” – 45cm
GAUGE: 0.63” - 1.6 mm
PITCH: .325"
DRIVE LINKS (E) : 68
SPROCKET NOSE # THEET : 10
MOUNTING : SW82 – Width (.322"-8.2mm) - Stihl 3005 - Oregon D0025
APPROVED TO MACHINES:
Stihl® 021, 025, 025C, MS 230, MS 230C, MS 230 C-BE, MS 241 C-M, MS 250, MS 250 C, MS 250 C-BE, MS 251, MS 251C, MS 251 C-BE, MS 251 WOOD BOSS

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

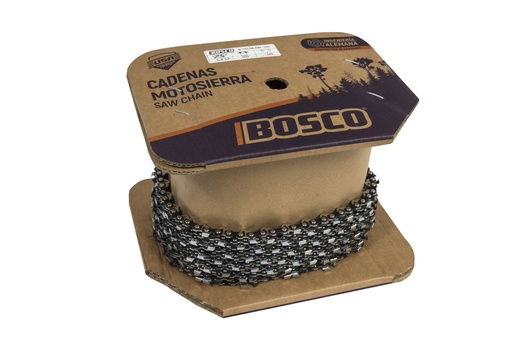

CODE: TBC-CSC-38R6C-100RL
PITCH : 3/8”
GAUGE : 1.6mm (0.63")
CUTTER: Full Chisel
SHARPENING ANGLE : 35°
SAFETY : Ramped Depth Gauge
REEL LENGHT : 100 ft – 30.5 m
CUTTER / REEL : 816
DRIVE LINKS / REEL : 1632
REMARK: Quick and easy to sharpen, it has been designed to get the most out of the power of current machines. Ramped depth gauge and stamped drive link with extra lubrication reservoir give you great security and greater durability in addition to taking care of your guidebar.

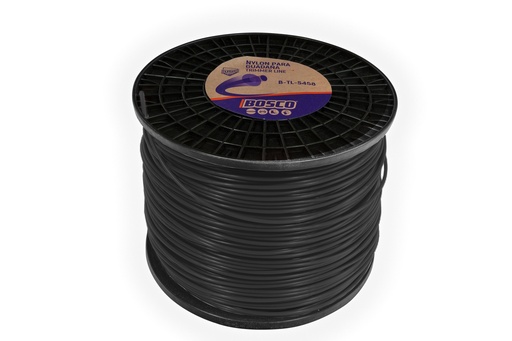

CODE : TBC-TL-BS-3321
WEIGHT : 1/2 Lb
LENGHT : 21 m.
NYLON DIAMETER : 3.3 mm
SHAPE : Square
NOTE : Durable cut nylon, does not deflecate. Ideal for professional contractors in the maintenance of meadows in residences.

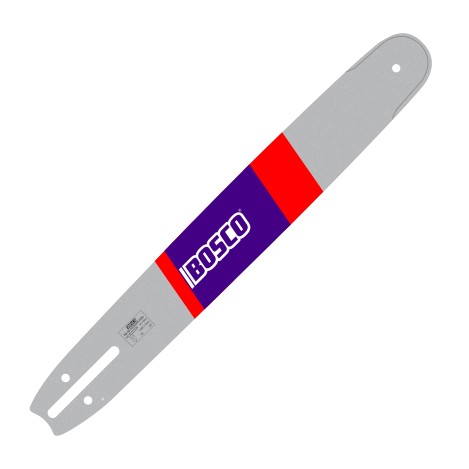

CODE : TBA-GB-24538DPM-HV90
LENGTH : 24” – 60cm
GAUGE : 0.58” - 1.5 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 84
NOSE : HARD
MOUNTING : HV90– Width (.355"- 9.0mm) - Husqvarna® HT388 Oregón D009
APPROVED TO MACHINES:
Husqvarna® 61, 65, 562, 565, 160, 162, 260, 465 Rancher

362, 362XP

L Series: 66, 70, 77; 181, 185, 266, 268, 272, 281, 285, 288, 288XP Lite, 298, 365, 371, 372, 372XP, 372XPG, 372XPW, 380, 385, 385XP, 385XPG, 385XPW, 390XP, 390XPG, 390XPW, 394, 394XP, 395, 395XP, 395XPG, 395XPW, 480, 565, 570, 572XP, 572XPG, 575XP, 575XPG, 575XPW, 576XP, 576XP Auto Tune, 576xpg, 576xpw, 1100, 2100, 2101,
3120, 3120XP, Jungle 3120

REMARKS: The top of the range, for professional users in reforesting machines that work in the most demanding environments for long hours. The reinforced tip with Estelita 6B and the chromium-molybdenum body make our product last longer. Recommended for saw sizes 3.8 cu.in. (55.5cc) and above. Available in lengths 20” – 42”

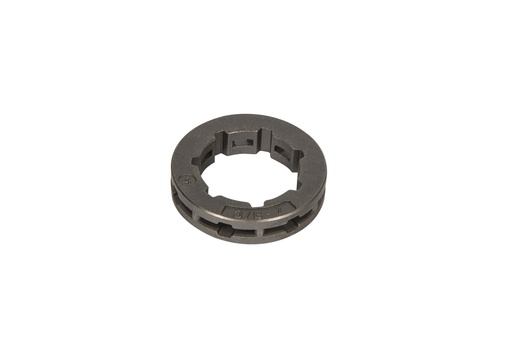

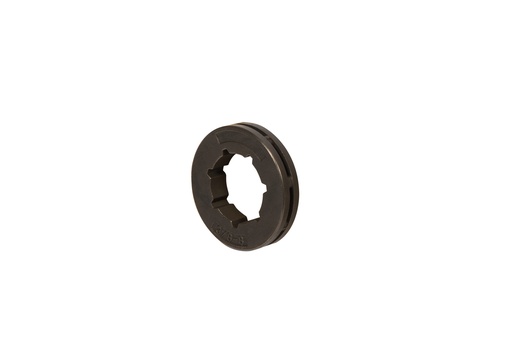

CODE : TBA-SR-375-7
PITCH : .375”
SLOTS : 7
COUPLING : Standard 7
EQUIVALENT TO:
Stihl® 050, 051, 075, 076, MS 362, MS 441 Magnum, MS 880 Magnum

Husqvarna® 77, 260, 263, 280, 380, 390XP, 480, 576XP, 576XPG, 576XPGW, L65

REMARK : Trendy two-piece sprocket crown system, is being applied in most types of chainsaws due to its easy installation and wear verification, in addition to representing less wear on the chain. Suitable for all users.

CODE : TBHT-SF-8WH-CS5/32
LENGHT : 8” – 20 cm
DIAMETER : 5/32” – 4.0mm
RECOMMENDED TO SAWCHAIN : 1/4”, 3/8” mini
REMARKS : Round file for manual sharpening of saw chains with precise spiral cut for outstanding sharpness and particularly long tool life. For fast, score-free sharpening of saw teeth. In comparison to machine sharpening, these files remove stock sparingly without thermal loads due to friction on the metal.

CODE : TBM-BC-2S427-CG2521B
ENGINE : 2 strokes, single piston, cooled by air
DISPLACEMENT : 42.7 CC
IGNITION : CDI – electronic
CARBURATOR : Diaphragm
POWER : 1.5 Kw – 2.3 H.P
IDLE : 2800 – 3000 rpm (MAX 7000 rpm)
FUEL MIX : 25 (Gas) : 1 (2 strokes Oil)
POLE : Diameter: 28mm / Lenght : 150 cm
HANDLE : Diameter: 19mm / Thickness : 1.2 mm
NET WEIGHT : 5.7 Kg
NOISE : 110 Db
ACCESORIES INCLUDED : 1 Blade, Harnes, Trimmer Head, Tool Kit, User Manual
REMARKS : Lightweight brushcutter, ideal for intensive use, as well as compact giving a soft feeling due to its low vibration and noise; In addition to offering great power with low fuel consumption, it is the ideal tool for contractors.

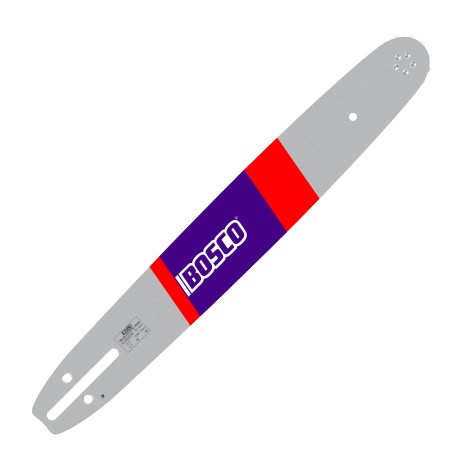

CODE: TBA-GB-18332RT12-QR121
LENGTH: 18” – 45cm
GAUGE: 0.50” - 1.3 mm
PITCH: .325"
DRIVE LINKS (E) : 74
SPROCKET NOSE # THEET : 12
MOUNTING : QR121 – Width (.475"-12.1mm) - Stihl 3005 - Oregon D0025
APPROVED TO MACHINES:
Stihl® MS 261, MS 261 C-M, MS 270, MS 270 C, MS 270 C-B, MS 270 C-QS, MS 271, MS 271 FARM BOSS, MS 280, MS 280 C-BQ, MS 280 C-QS, MS 291, MS 291 C-BEQ

026, 026 Pro, 028, 028 Super, 029, 030, 031, 032, 034, 034 Super, 036, 036P, 036 QS, 041, MS 260, MS 260 Pro, MS 261, MS 261 C-M, MS 261 C-Q, MS 261 C-MQ, MS 290,
MS 310, MS 311, MS 341, MS 360, MS 360 C, MS 360 Pro, MS 360 Q-S, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 361R

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

CODE: TBC-CSC-38AK5C-100RL
PITCH : 3/8”
GAUGE : 1.5mm (0.58")
CUTTER: Chisel
SHARPENING ANGLE : 35°
SAFETY : Anti KickBack Bumper Drive Link
REEL LENGHT : 100 ft – 30.5 m
CUTTER / REEL : 816
DRIVE LINKS / REEL : 1632
REMARK: Quick and easy to sharpen, it has been designed to make the most of the power of today's machines. Its guide with a safety guard and also with extra lubrication reservoir, gives it great security and in addition takes care of your guidebar.

ODE: TBC-CSC-38LPAK1SC-25RL
PITCH : 3/8”
GAUGE : 1.1mm (0.43")
CUTTER: Semi-Chisel mini (Low Profile)
SHARPENING ANGLE : 30°
SAFETY : Bumper Tie Strap / Low Profile Rampes Depth Gauge
REEL LENGHT : 25ft – 7.6 m
CUTTER / REEL : 204
DRIVE LINKS / REEL : 408
REMARK: The fact that it is light and resistant to dents, in addition to having ramped depth gauge, makes it very safe and easy to maneuver; The preferred by occasional users. Its guide with extra lubrication stamping reservoir gives it greater durability, in addition to taking care of your sword.

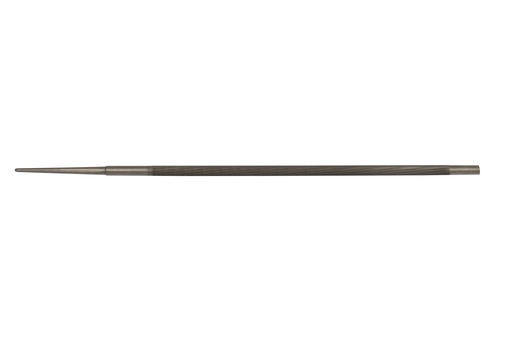

CODE : TBHT-SF-8WH-CS3/16
LENGHT : 8” – 20 cm
DIAMETER : 3/16” – 4.8mm
RECOMMENDED TO SAWCHAIN : .325”
REMARKS : Round file for manual sharpening of saw chains with precise spiral cut for outstanding sharpness and particularly long tool life. For fast, score-free sharpening of saw teeth. In comparison to machine sharpening, these files remove stock sparingly without thermal loads due to friction on the metal.

CODE : TBA-SR-375-7
PITCH : .375”
SLOTS : 7
COUPLING : Standard 7
EQUIVALENT TO:
Stihl® 030, 031,032, 038, 038 Super Magnum, 041, 044, 046, 064, 066, 066 Magnum, MS361, MS362, MS 440, MS 460, MS 441 Magnum, MS 660,

Husqvarna® 181, 185, 281, 285, 288, 298, 390XP, 390XPW, 394, 394XP, 395, 395XP, 395XPG, 395XPW, 1100, 2100, 2101, 3120XP, Jungle 3120

REMARK : Trendy two-piece sprocket crown system, is being applied in most types of chainsaws due to its easy installation and wear verification, in addition to representing less wear on the chain. Suitable for all users.

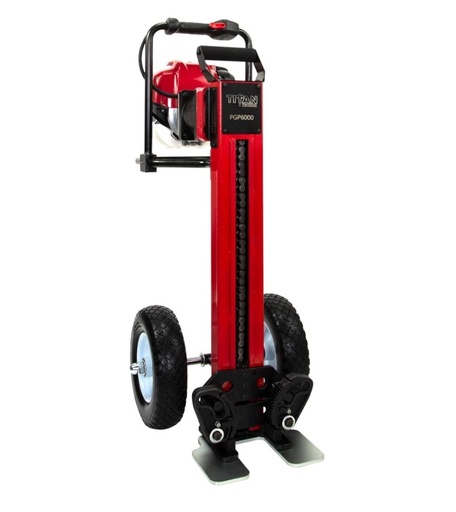

CODE: TITAN-PP-PGP6000-STK
ENGINE TYPE: 4-stroke, single cylinder (OHV), air cooled
CYLINDERAGE: 47.9 CC
IGNITION: CDI – electronic
CARBURETOR: Diaphragm
POWER: 1.6 Kw – 2.2 H.P
IDLE: 3000 – 3400 rpm (MAX 7,000 rpm)
FUEL: Regular gasoline
LUBRICATION: Vaporization
TANK CAPACITY: 0.63 L
OIL PAN: 130c.c
NET WEIGHT: 52 Kg
INCLUDES: 4 Sets of Quick Change Forged Steel Jaws, 1 Forked Tent Stake Adapter

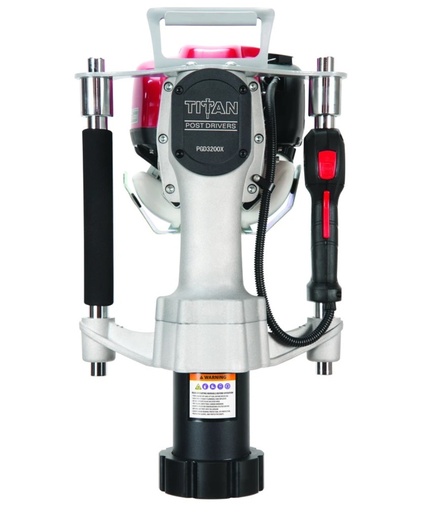

CODE: TITAN-PGD3200X-XSERIES

A powerful and portable commercial duty post driver. Powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty threaded steel barrel accommodates up to 3 ⅛” diameter post, pipe, rod, or stake. The spin barrel cap offers quick OFF/ON for secure adapter sleeve changes. Included is a 2 ½” solid industrial grade poly adapter sleeve. Additional adapter sleeves are available in ½”, ¾”, 1″, 1 ¾”, 2″ & 2¼” sizes. Choose the correct sleeve based on size of post, pipe, rod, or stake you will be driving for optimal performance. No fuel mixture is required. Use premium gas for superior performance.

This post driver is 100% self-contained, easy to lift, move, and carry. No hoses or compressors are required. It drives posts in half the time with less physical effort than with a manual driver. Assembled and serviced in the USA.

Comes complete with a sturdy, poly carrying case; engine oil; extra lube, 2 ½” adapter sleeve; and tool kit.

X Series – commercial duty driver
Self-Contained, powerful, and portable, 45 lbs driver
Honda GX35 1.3 hp, 4-stroke engine
Heavy Duty, threaded barrel
Comes with 2 ½” adapter sleeve (solid industrial grade poly)
X Series allows customized handle kits
Accommodates material up to a maximum of 3 ⅛” diameter.

CODE : TBA-GB-20532RT12-POH82
LENGTH : 20” – 50cm
GAUGE : 0.58” - 1.5 mm
PITCH : .325"
DRIVE LINKS (E) : 78
SPROCKET NOSE # THEET : 12
MOUNTING : POH82– Width (.322"- 8.2mm) - Husqvarna® HLN-250 Oregón K095/A095
APPROVED TO MACHINES:
Husqvarna® 51, 55, 55 Rancher, 57, 254, 254XP, 257, 261, 262, 262XP, 357XP, 357XPG, 359, 359 E-Tech, 455, 455 Rancher, 455e Rancher, 460, 460 Rancher, 543XP, 543XPG, 555, 560XP, 560XPG

44, 45, 49, 50, 133, 154, 234, 238, 242, 242XP, 246, 340, 345, 346, 346XP, 346XP E-TECH, 346XPG, 350, 351, 353, 353 E-TECH, 435, 435E, 440E, 444, 445, 445E, 450, 450E,
545, 545 Mark II, 550XP, 550XP Mark II, 550XPG, 550XPG Mark II

338XPT, 339XP, 336, 362, 362XP

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

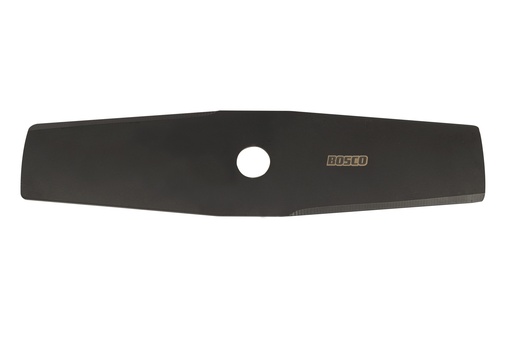

CODE: TBC-BCB-B2TB3586-2520
LENGTH: 13" (350mm)
WIDTH: 86mm
BORE: .787" (20mm)
THICKNESS: 2.5mm
USE: For professional users where performance and safety are required. The BOSCO® Heavy Duty brushcutter blade is designed to exceed your requirement.
