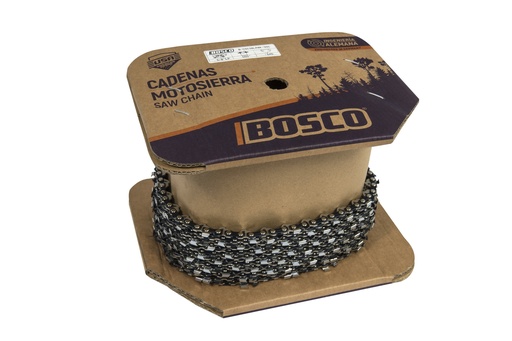

CODE: TBC-CSC-32AK3SC-100RL
PITCH : .325”
GAUGE : 1.3mm (0.50")
CUTTER: Semi-Chisel
SHARPENING ANGLE : 35°
SAFETY : Anti KickBack Bumper Drive Link
REEL LENGHT : 100 ft – 30.5 m
CUTTER / REEL : 924
DRIVELINKS / REEL : 1848
REMARK: Optimum resistance to chipping and easy to sharpen. Its guide is designed with a safety guard and also stamped with extra lubrication reservoir, giving it great security and greater durability in addition to taking care of your guidebar.

CODE: TBC-CSC-38R3SC-100RL
PITCH : 3/8”
GAUGE : 1.3mm (0.50")
CUTTER: Semi-Chisel
SHARPENING ANGLE : 25°
SAFETY : Ramped Depth Gauge
REEL LENGHT : 100 ft – 30.5 m
CUTTER / REEL : 816
DRIVE LINKS / REEL : 1632
REMARK: Optimum resistance to chipping and easy to sharpen. ideal for work in abrasive terrain where fast cutting is required. Its guide stamped with extra lubrication reservoir, furthermore a rapmed depth gauge, give it great security and greater durability in addition to taking care of your guidebar.

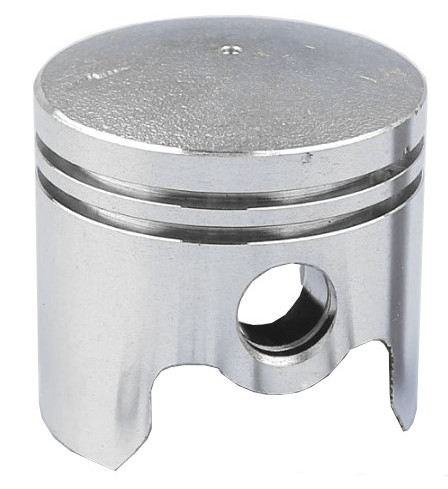

CODE: TB-SPBC-CG2431B-E44
PURPOSE: s to constitute a moving wall of the combustion chamber, transmitting the energy of the combustion gases to the crankshaft through an reciprocating movement within the cylinder.
MATERIAL: aluminum
SIZE: length: 9.3 cm - width: 9.1 cm - thickness: 8.6 cm

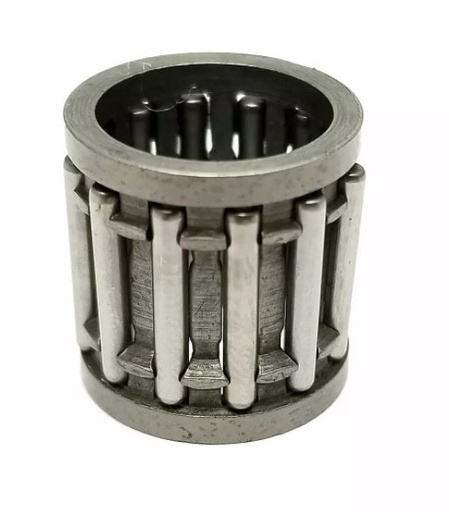

CODE: TB-SPBC-CG2431B-E45
PURPOSE: Reduces friction between the pin and the piston head by rolling, which serves as support and facilitates its movement.
MATERIAL: Steel
SIZE: length: 10 cm - width: 14 cm - thickness: 11 cm

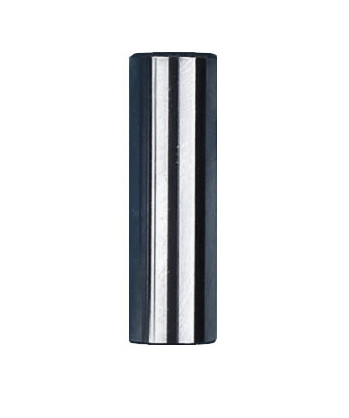

CODE: TB-SPBC-CG2431B-E46
PURPOSE: It is the element that ensures the connection between the connecting rod and the piston and has the mission of transmitting its force to the connecting rod.
MATERIAL: 20Cr
SIZE: diameter: 1 cm - length: 3.3 cm.

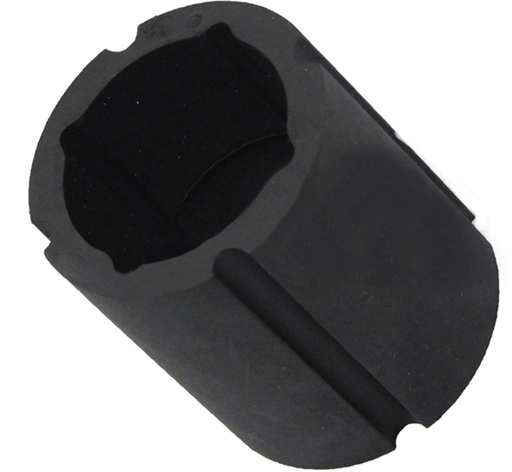

CODE: TB-SPBC-CG2431B-S06
PURPOSE: To dampen the vibration generated by the operation of the machine.
MATERIAL: Rubber
SIZE: Length: 55mm. diameter: 43mm

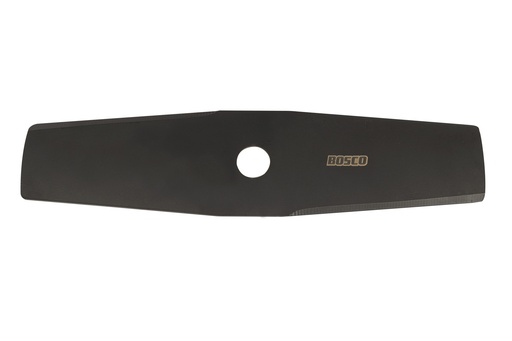

CODE: TBC-BCB-B2TB3586-2525
LENGTH: 13" (350mm)
WIDTH: 86mm
BORE: 1" (25.4mm)
THICKNESS: 2.5mm
USE: For professional users where performance and safety are required. The BOSCO® Heavy Duty brushcutter blade is designed to exceed your requirement.

CODE: TBC-CSC-385SC10-100RL
PITCH : 3/8”
GAUGE : 1.5mm (0.58")
CUTTER: Semi-Chisel
SHARPENING ANGLE : 10°
SAFETY : Ramped Depth Gauge
REEL LENGHT : 100 ft – 30.5 m
CUTTER / REEL : 816
DRIVE LINKS / REEL : 1632
REMARK: Optimum resistance to chipping and easy to sharpen. ideal for work in abrasive terrain and soften finishes in cutting is required. Its guide stamped with extra lubrication reservoir, furthermore a rapmed depth gauge, give it great security and greater durability in addition to taking care of your guidebar.

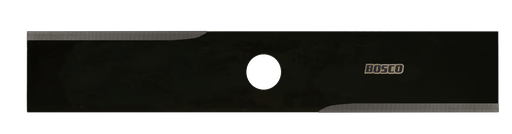

CODE: TBC-BCB-B2TR4580-2525
LENGTH: 18" (450mm)
WIDTH: 80mm
BORE: 1" (25.4mm)
THICKNESS: 2.5mm
USE: For professional users where performance and safety are required. The BOSCO® Heavy Duty brushcutter blade is designed to exceed your requirements.

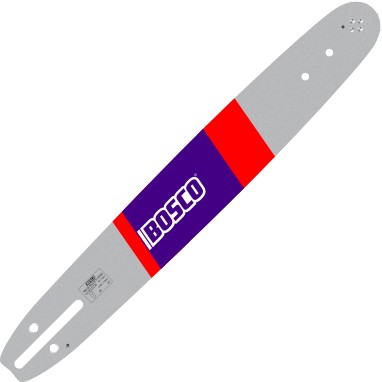

CODE : TBA-GB-16338LPRT9-POH82
LENGTH : 16” – 40cm
GAUGE : 0.050” - 1.3 mm
PITCH : 3/8" MINI
DRIVE LINKS (E) : 56
SPROCKET NOSE # THEET : 9
MOUNTING : POH82– Width (.322"- 8.2mm) - Husqvarna® HLN-250 Oregón K095/A095
APPROVED TO MACHINES:
Husqvarna® 51, 55, 55 Rancher, 57, 254, 254XP, 257, 261, 262, 262XP, 357XP, 357XPG, 359, 359 E-Tech, 455, 455 Rancher, 455e Rancher, 460, 460 Rancher, 543XP, 543XPG, 555, 560XP, 560XPG

44, 45, 49, 50, 133, 154, 234, 238, 242, 242XP, 246, 340, 345, 346, 346XP, 346XP E-TECH, 346XPG, 350, 351, 353, 353 E-TECH, 435, 435E, 440E, 444, 445, 445E, 450, 450E,
545, 545 Mark II, 550XP, 550XP Mark II, 550XPG, 550XPG Mark II

338XPT, 339XP, 336, 362, 362XP

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

CODE : TBA-TH-M-2205

STUD M10X1.25 - M10X1.25 : Shindaiwa C35 – C350 – B45, Kawasaki T 40 – TD48 – TH43 – TH48, Stihl FS120 – FS160, FS250

STUD M10X1.25 - M8X1.25 : Maruyama BC430 – BC4321 – BCF4320 – BCF4321, Beaver D427 – K427 – B45000

STUD M10X1.25 – M7X1 :Shindaiwa C320

ARBOR BOLT M10X1.25 : Bosco BC42.7, Mitsubishi TL430 – TL52 – TL33, Echo 3605 – 4300 – 4605

REMARKS :
This Trimmer Head is the classic of the cutter head family, it is tough on the job and easy to use. Suitable for all types of cleaning in gardens and green areas. It comes with an adapter kit for the vast majority of machines on the market.

CODE: TB-SPBC-CG2431B-E28
PURPOSE: Removes solid particles such as dust, pollen and bacteria from the air
MATERIAL: Plastic + Foam
SIZE: length: 10.6 cm - width: 10.3 cm - thickness: 4.7 cm

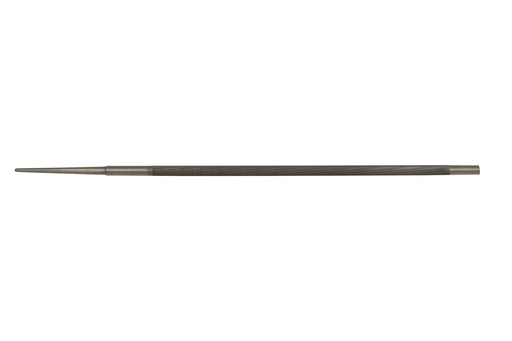

CODE : TBHT-SF-8WH-CS7/32
LENGHT : 8” – 20 cm
DIAMETER : 7/32” – 5.5mm
RECOMMENDED TO SAWCHAIN : 3/8” - .404”
REMARKS : Round file for manual sharpening of saw chains with precise spiral cut for outstanding sharpness and particularly long tool life. For fast, score-free sharpening of saw teeth. In comparison to machine sharpening, these files remove stock sparingly without thermal loads due to friction on the metal.

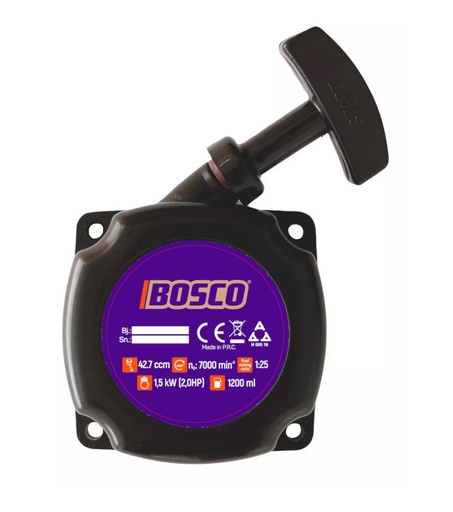

CODE: TB-SPBC-CG2431B-E25
PURPOSE: Move the flywheel and crankshaft to start combustion.
MATERIALS: PA6 + GF30
SIZE: diameter 8.1cm - thickness: 3.2cm

CODE: TB-SPBC-CG2431B-E29
PURPOSE: It is responsible for supplying the engine with the mixture and quantity of air and fuel necessary at all times.
MATERIAL: aluminum
SIZE: length: 8.6 cm - width: 5.2 cm - height: 3.1 cm

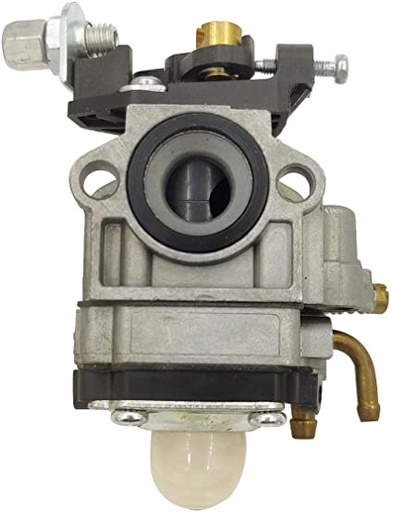

CODE: TB-SPBC-CG2431B-E34
PURPOSE: Device responsible for mixing air and fuel in the best possible way, in the gasoline engine, which then goes to the cylinders. The fuel that is mixed in the carburetor comes from the tank.
MATERIAL: aluminum
SIZE: length: 9.3 cm - width: 8.5 cm

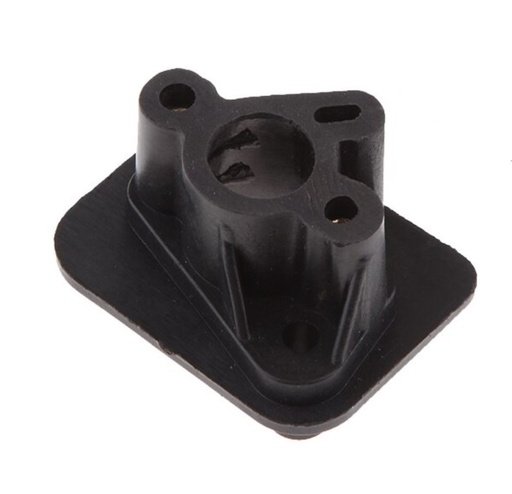

CODE: TB-SPBC-CG2431B-E31
PURPOSE: This is the part that fits between the carburetor and the engine, it has a gasket on both sides. Reinforced with steel to ensure proper sealing.
Distance between fixing holes (eye center to eye center): 31mm/1.22in
MATERIAL: PA6
SIZE: length: 5.5 cm - width: 4.1 cm - thickness: 3 cm

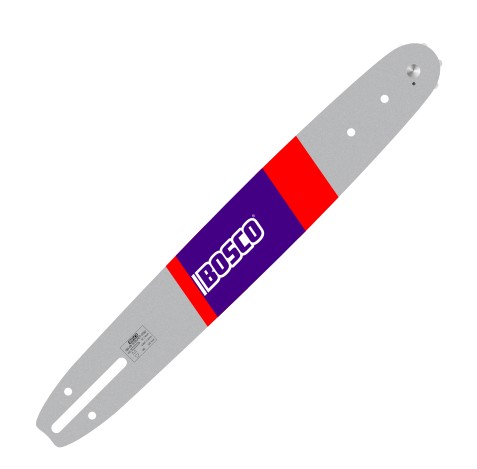

CODE : TBA-GB-16138LPRT7-PO82
LENGTH : 16” – 40cm
GAUGE : 0.43” - 1.1 mm
PITCH : 3/8" mini (LP: Low Profile)
DRIVE LINKS (E) : 56
SPROCKET NOSE # THEET : 7
MOUNTING : PO82– Width (.322"- 8.2mm) - Husqvarna® HL-186 Oregón K041/A041
APPROVED TO MACHINES:
Husqvarna® 23, 137, 142, 36, 41, 120 MARK II, 135, 135 MARK II, 136, 141, 235, 235E, 236, 240, 240E, 115iPT4, 316 Electric, 334T, 335, 335XPT, 530iPTS, 530iP4, T435, T525, T540, T540XP, 338XPT, 339XP, 336

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

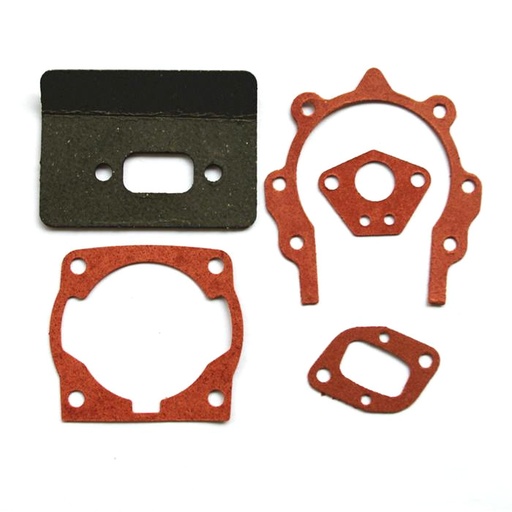

CODE: TB-SPBC-CG2431B-E51
PURPOSE: Provide sealing of combustion gases, lubrication oil and coolant moment
MATERIAL: Oil resistant cardboard
SIZE: thickness: 0.5cm
