CODE: TBC-CSC-32AK6SC-100RL
PITCH : .325”
GAUGE : 1.6mm (0.63")
CUTTER: Semi-Chisel
SHARPENING ANGLE : 35°
SAFETY : Anti KickBack Bumper Drive Link
REEL LENGHT : 100 ft – 30.5 m
CUTTER / REEL : 924
DRIVELINK / REEL : 1848
REMARK: Optimum resistance to chipping and easy to sharpen. Its guide is designed with a safety guard and also stamped with extra lubrication reservoir, giving it great security and greater durability in addition to taking care of your guidebar.

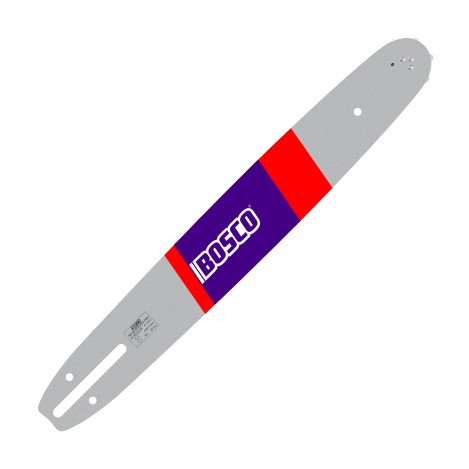

CCODE : TBA-GB-16338LPRT9-SW82
LENGTH : 16” – 40cm
GAUGE : 0.050” - 1.3 mm
PITCH : 3/8" mini (LP: Low Profile)
DRIVE LINKS (E) : 55
SPROCKET NOSE # THEET : 9
MOUNTING : SW82– Width (.322"- 8.2mm) - Stihl® 3005 - Oregon® A074/K074
APPROVED TO MACHINES:
Stihl®HT70, HT75, HT100, HT101, H131, HTE60, 017, 019T, MS190, E140, 023L, 017, 019T, MS190, E140, 023L

MSE140, MSE160, MS170, MSE170, MS171, MSE180, MS181,MSE190, MS191T, MS192, MSE210, MSE230, MS241, MS251, MS193,MSE141

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

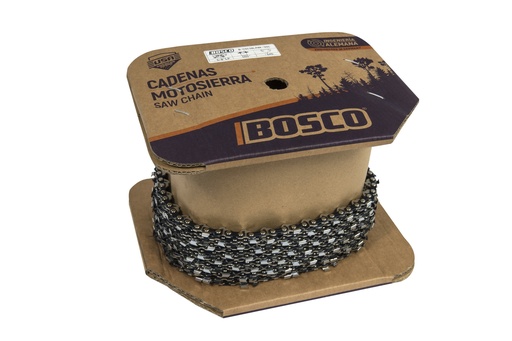

CODE: TBC-CSC-38R5SC-100RL
PITCH : 3/8”
GAUGE : 1.5mm (0.58")
CUTTER: Semi-Chisel
SHARPENING ANGLE : 25°
SAFETY : Ramped Depth Gauge
REEL LENGHT : 100 ft – 30.5 m
CUTTER / REEL : 816
DRIVE LINKS / REEL : 1632
REMARK: Optimum resistance to chipping and easy to sharpen. ideal for work in abrasive terrain where fast cutting is required. Its guide stamped with extra lubrication reservoir, furthermore a rapmed depth gauge, give it great security and greater durability in addition to taking care of your guidebar.

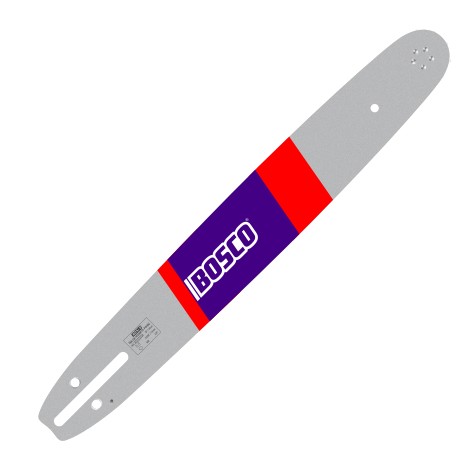

CODE : TBA-GB-20532RT11-POH82
LENGTH : 20” – 50cm
GAUGE : 0.58” - 1.5 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 72
SPROCKET NOSE # THEET : 11
MOUNTING : POH82– Width (.322"- 8.2mm) - Husqvarna® HLN-250 Oregón K095/A095
APPROVED TO MACHINES:
Husqvarna® 51, 55, 55 Rancher, 57, 254, 254XP, 257, 261, 262, 262XP, 357XP, 357XPG, 359, 359 E-Tech, 455, 455 Rancher, 455e Rancher, 460, 460 Rancher, 543XP, 543XPG, 555, 560XP, 560XPG

338XPT, 339XP, 336, 362, 362XP

REMARKS: For professionals of reforestation companies, such as the loggers. It is lightweight, portable and durable. The 4 rivet sprocket system in the tip offers longer life and superior performance. Thanks to the better adjustment of the chain, reduce rail wear, which results in a more precise cut. Its low radius decreases the fatigue of the worker and allows him to react better during the working day. Recommended for saw sizes 3.8 cu.in. (61cc) and smaller. Available in lengths 15” - 20”

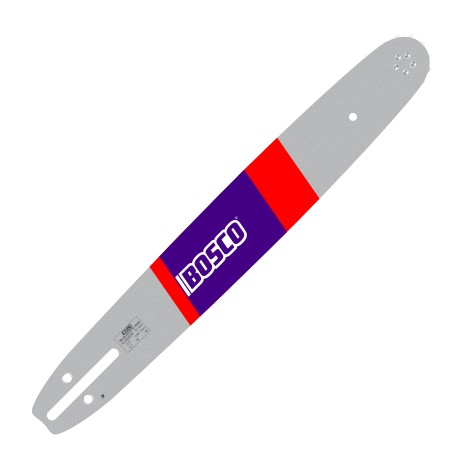

CODE : TBA-GB-16532RT12-POH82
LENGTH : 16” – 40cm
GAUGE : 0.058” - 1.5 mm
PITCH : .325"
DRIVE LINKS (E) : 66
SPROCKET NOSE # THEET : 12
MOUNTING : POH82– Width (.322"- 8.2mm) - Husqvarna® HLN-250 Oregón K095/A095
APPROVED TO MACHINES:
Husqvarna® 51, 55, 55 Rancher, 57, 254, 254XP, 257, 261, 262, 262XP, 357XP, 357XPG, 359, 359 E-Tech, 455, 455 Rancher, 455e Rancher, 460, 460 Rancher, 543XP, 543XPG, 555, 560XP, 560XPG

44, 45, 49, 50, 133, 154, 234, 238, 242, 242XP, 246, 340, 345, 346, 346XP, 346XP E-TECH, 346XPG, 350, 351, 353, 353 E-TECH, 435, 435E, 440E, 444, 445, 445E, 450, 450E,
545, 545 Mark II, 550XP, 550XP Mark II, 550XPG, 550XPG Mark II

338XPT, 339XP, 336, 362, 362XP

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

CODIGO : TBC-CSC-40R6R-100RL
PITCH : .404”
GAUGE : 1.6mm (0.63")
CUTTER : Chipper
SHARPENING ANGLE : 35°
SAFETY : Fast
REEL LENGHT : 100 ft– 30.5 mt
CUTTER / REEL: 742
DRIVELINK / ROLLO : 1488
REMARK :
The most powerful and durable, ideal for work in abrasive terrain and aggressive cutting is required. Its guide designed with extra lubrication stamping gives you great security and greater durability in addition to taking care of your guidebar.

CODE : TBA-GB-16338LPRT9-PO82
LENGTH : 16” – 40cm
GAUGE : 0.50” - 1.3 mm
PITCH : 3/8" mini (LP: Low Profile)
DRIVE LINKS (E) : 56
SPROCKET NOSE # THEET : 9
MOUNTING : PO82– Width (.322"- 8.2mm) - Husqvarna® HL-180 Oregón K041/A041
APPROVED TO MACHINES:
Husqvarna® 135, 136, 137, 141, 142, 236e,* 240e*, 243, 315 EL, 317 EL, 321 EL, 333, 334T, 335XPT, 338XPT, T435, T540XP, 1400 EL, 1500 EL, 1600 EL, 525P4S

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical with 4 rivets, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

CODIGO : TBC-CSC-40R6R10-100RL
PITCH : .404”
GAUGE : 1.6mm (0.63")
CUTTER : Chipper
SHARPENING ANGLE : 10°
SAFETY : Fast
REEL LENGHT : 100 ft– 30.5 mt
CUTTER / REEL: 742
DRIVELINK / ROLLO : 1488
REMARK :
The most powerful and durable, ideal for work in abrasive terrain and soften finishes in cutting is required. Its guide designed with extra lubrication stamping gives you great security and greater durability in addition to taking care of your guidebar.

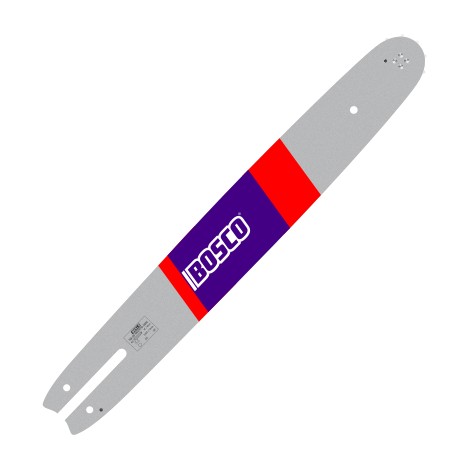

CODE: TBA-GB-16632RT10-SW82
LENGTH: 16” – 40cm
GAUGE: 0.63” - 1.6 mm
PITCH: .325"
DRIVE LINKS (E) : 62
SPROCKET NOSE # THEET : 10
MOUNTING : SW82 – Width (.322"-8.2mm) - Stihl 3005 - Oregon D0025
APPROVED TO MACHINES:
Stihl® 021, 025, 025C, MS 230, MS 230C, MS 230 C-BE, MS 241 C-M, MS 250, MS 250 C, MS 250 C-BE, MS 251, MS 251C, MS 251 C-BE, MS 251 WOOD BOSS

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

CODE : TBA-GB-14338LPRT9-SW82
LENGTH : 14” – 35cm
GAUGE : 0.50” - 1.3 mm
PITCH : 3/8" mini (LP: Low Profile)
DRIVE LINKS (E) : 50
SPROCKET NOSE # THEET : 9
MOUNTING : SW82– Width (.322"- 8.2mm) - Stihl® 3005 - Oregon® A074/K074
APPROVED TO MACHINES:
Stihl®009, 010, 011, 018, 019, 019T, 020, 020T, 021, 023, 025, E10, E14, E160, E180,

MSE200, MS241, MS200T, MS180, MS191, MS170, MS210, MS211,MS230, MSE140, MS160, MSE170, MSE190, MSE210, MSE230, MS250, MS180, MS192, MS231, MS201

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical with 4 rivets, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

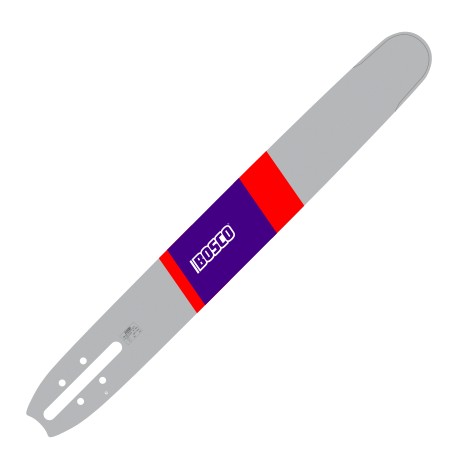

CODIGO : TBA-GB-36640DPL-DL14
LENGHT : 36” – 90cm
GAUGE : 0.063” - 1.6 mm
PITCH : 404”
DRIVE LINKS (E) : 104
104
NOSE : HARD
MOUNTING : DL14 – Width .561” / 14mm
APPROVED TO MACHINES : Stihl® 051, 070, 090
REMARK :For professional reforestation users who work in the most demanding environments for long hours. The nose reinforced with Estelite 6B and the chrome-molybdenum body make our product last longer.

CODE : TBA-GB-18532RT12-POH82
LENGTH : 18” – 45cm
GAUGE : 0.058” - 1.5 mm
PITCH : .325"
DRIVE LINKS (E) : 72
SPROCKET NOSE # THEET : 12
MOUNTING : POH82– Width (.322"- 8.2mm) - Husqvarna® HLN-250 Oregón K095/A095
APPROVED TO MACHINES:
Husqvarna® 51, 55, 55 Rancher, 57, 254, 254XP, 257, 261, 262, 262XP, 357XP, 357XPG, 359, 359 E-Tech, 455, 455 Rancher, 455e Rancher, 460, 460 Rancher, 543XP, 543XPG, 555, 560XP, 560XPG

44, 45, 49, 50, 133, 154, 234, 238, 242, 242XP, 246, 340, 345, 346, 346XP, 346XP E-TECH, 346XPG, 350, 351, 353, 353 E-TECH, 435, 435E, 440E, 444, 445, 445E, 450, 450E,
545, 545 Mark II, 550XP, 550XP Mark II, 550XPG, 550XPG Mark II

338XPT, 339XP, 336, 362, 362XP

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

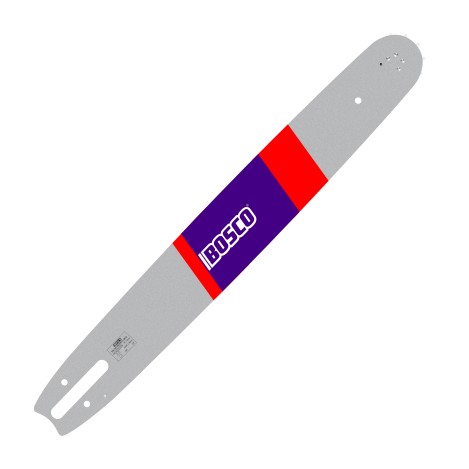

CODE : TBA-GB-15638RT11-QR121
LENGTH : 15” – 37cm
GAUGE : 0.63” - 1.6 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 56
SPROCKET NOSE # THEET : 11
MOUNTING : QR121 – Width (.475” / 12.1mm) - Stihl® 3003 Oregón D0025
APPROVED TO MACHINES:
Stihl®026, 026 Pro, 028, 028 Super, 029, 030, 031, 032, 034, 034 Super, 036, 036P, 036 QS, 041, MS 260, MS 260 Pro, MS 261, MS 261 C-M, MS 261 C-Q, MS 261 C-MQ, MS 290, MS 310, MS 341, MS 360, MS 360 C, MS 360 Pro, MS 360 Q-S, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 362, MS 362 R, MS 362 C-M

039, 048, MS 362, MS 362 R, MS 362 C-M, MS 390, MS 391

038, 038 Super Magnum, 042, 044, 044M, 045, 046, 046M, MS 362, MS 362 R, MS 362 C-M, MS 400 C-M, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 441 C-M,
MS 441 C-MQ, MS 441 R C-M, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, MS 462 R, MS 462 R C-M

056, 064, 066, 066 Magnum, MS 500i, MS 500i R, MS 650, MS 660, MS 661 C-M, MS 661 RC-M, MS 661 Magnum, MS 661 Magnum, MS 661 C-M Magnum, MS R C-M Magnum

REMARKS: For professionals of reforestation companies, such as the loggers. It is lightweight, portable and durable. The 4 rivet sprocket system in the tip offers longer life and superior performance. Thanks to the better adjustment of the chain, reduce rail wear, which results in a more precise cut. Its low radius decreases the fatigue of the worker and allows him to react better during the working day. Recommended for saw sizes 3.8 cu.in. (61cc) and smaller. Available in lengths 15” - 20”

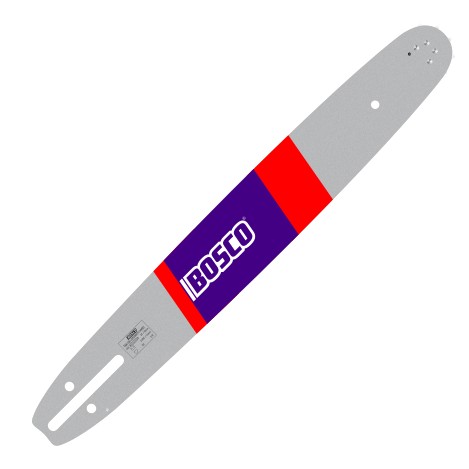

CODE : TBA-GB-20532RT11-HV90
LENGTH : 20” – 50cm
GAUGE : 0.58” - 1.5 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 72
SPROCKET NOSE # THEET : 11
MOUNTING : HV90– Width (.355"- 9.0mm) - Husqvarna® HLN-250 Oregón D009
APPROVED TO MACHINES:
Husqvarna® 61, 65, 562, 565, 160, 162, 260, 465 Rancher

L Series: 66, 70, 77; 181, 185, 266, 268, 272, 281, 285, 288, 288XP Lite, 298, 365, 371, 372, 372XP, 372XPG, 372XPW, 380, 385, 385XP, 385XPG, 385XPW, 390XP, 390XPG,
390XPW, 394, 394XP, 395, 395XP, 395XPG, 395XPW, 480, 565, 570, 572XP, 572XPG, 575XP, 575XPG, 575XPW, 576XP, 576XP Auto Tune, 576xpg, 576xpw, 1100, 2100, 2101,
3120, 3120XP, Jungle 3120

REMARKS: For professionals of reforestation companies, such as the loggers. It is lightweight, portable and durable. The 4 rivet sprocket system in the tip offers longer life and superior performance. Thanks to the better adjustment of the chain, reduce rail wear, which results in a more precise cut. Its low radius decreases the fatigue of the worker and allows him to react better during the working day. Recommended for saw sizes 3.8 cu.in. (61cc) and smaller. Available in lengths 15” - 20”

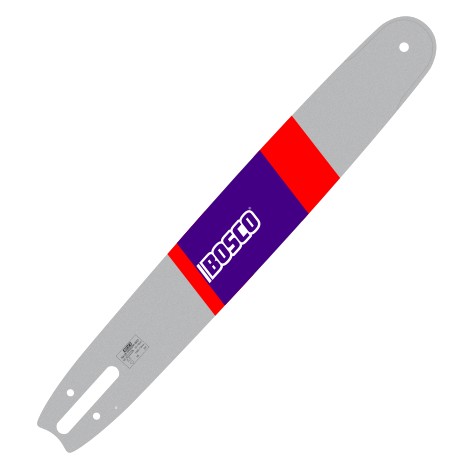

CODE : TBA-GB-20638DPM-QR121
LENGTH : 20” – 50cm
GAUGE : 0.63” - 1.6 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 72
NOSE : HARD
MOUNTING : QR121 – Width (.475” / 12.1mm) - Stihl® 3003 Oregón D0025
APPROVED TO MACHINES:
Stihl®026, 026 Pro, 028, 028 Super, 029, 030, 031, 032, 034, 034 Super, 036, 036P, 036 QS, 041, MS 260, MS 260 Pro, MS 261, MS 261 C-M, MS 261 C-Q, MS 261 C-MQ, MS 290, MS 310, MS 341, MS 360, MS 360 C, MS 360 Pro, MS 360 Q-S, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 362, MS 362 R, MS 362 C-M

E 20, E 220, MS 311, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MSE 220, MSE 250 C

039, 048, MS 362, MS 362 R, MS 362 C-M, MS 390, MS 391

038, 038 Super Magnum, 042, 044, 044M, 045, 046, 046M, MS 362, MS 362 R, MS 362 C-M, MS 400 C-M, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 441 C-M,
MS 441 C-MQ, MS 441 R C-M, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, MS 462 R, MS 462 R C-M

056, 064, 066, 066 Magnum, MS 500i, MS 500i R, MS 650, MS 660, MS 661 C-M, MS 661 RC-M, MS 661 Magnum, MS 661 Magnum, MS 661 C-M Magnum, MS R C-M Magnum

REMARKS: The top of the range, for professional users in reforesting machines that work in the most demanding environments for long hours. The reinforced tip with Estelita 6B and the chromium-molybdenum body make our product last longer. Recommended for saw sizes 3.8 cu.in. (55.5cc) and above. Available in lengths 20” – 42”

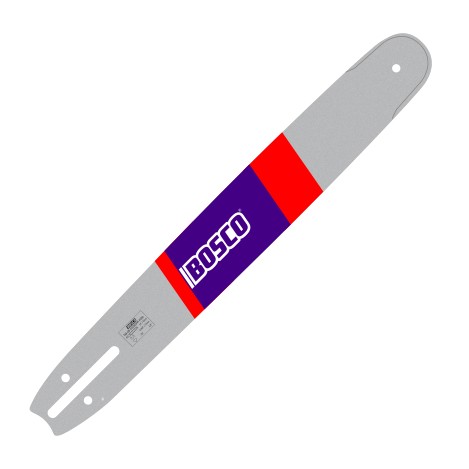

CODE : TBA-GB-28538DPM-HV90
LENGTH : 28” – 70cm
GAUGE : 0.58” - 1.5 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 92
NOSE : HARD
MOUNTING : HV90– Width (.355"- 9.0mm) - Husqvarna® HT388 Oregón D009
APPROVED TO MACHINES:
Husqvarna® 61, 65, 562, 565, 160, 162, 260, 465 Rancher

362, 362XP

L Series: 66, 70, 77; 181, 185, 266, 268, 272, 281, 285, 288, 288XP Lite, 298, 365, 371, 372, 372XP, 372XPG, 372XPW, 380, 385, 385XP, 385XPG, 385XPW, 390XP, 390XPG, 390XPW, 394, 394XP, 395, 395XP, 395XPG, 395XPW, 480, 565, 570, 572XP, 572XPG, 575XP, 575XPG, 575XPW, 576XP, 576XP Auto Tune, 576xpg, 576xpw, 1100, 2100, 2101,
3120, 3120XP, Jungle 3120

REMARKS: The top of the range, for professional users in reforesting machines that work in the most demanding environments for long hours. The reinforced tip with Estelita 6B and the chromium-molybdenum body make our product last longer. Recommended for saw sizes 3.8 cu.in. (55.5cc) and above. Available in lengths 20” – 42”

CODE : TBA-GB-24638DPM-QR121
LENGTH : 24” – 60cm
GAUGE : 0.063” - 1.6 mm
PITCH : 3/8" (.375")
DRIVE LINKS (E) : 84
NOSE : HARD
MOUNTING : QR121 – Width (.475” / 12.1mm) - Stihl® 3003 Oregón D0025
APPROVED TO MACHINES:
Stihl®026, 026 Pro, 028, 028 Super, 029, 030, 031, 032, 034, 034 Super, 036, 036P, 036 QS, 041, MS 260, MS 260 Pro, MS 261, MS 261 C-M, MS 261 C-Q, MS 261 C-MQ, MS 290, MS 310, MS 341, MS 360, MS 360 C, MS 360 Pro, MS 360 Q-S, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 362, MS 362 R, MS 362 C-M

E 20, E 220, MS 311, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MSE 220, MSE 250 C

039, 048, MS 362, MS 362 R, MS 362 C-M, MS 390, MS 391

038, 038 Super Magnum, 042, 044, 044M, 045, 046, 046M, MS 362, MS 362 R, MS 362 C-M, MS 400 C-M, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 441 C-M,
MS 441 C-MQ, MS 441 R C-M, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, MS 462 R, MS 462 R C-M

056, 064, 066, 066 Magnum, MS 500i, MS 500i R, MS 650, MS 660, MS 661 C-M, MS 661 RC-M, MS 661 Magnum, MS 661 Magnum, MS 661 C-M Magnum, MS R C-M Magnum

REMARKS: The top of the range, for professional users in reforesting machines that work in the most demanding environments for long hours. The reinforced tip with Estelita 6B and the chromium-molybdenum body make our product last longer. Recommended for saw sizes 3.8 cu.in. (55.5cc) and above. Available in lengths 20” – 42”

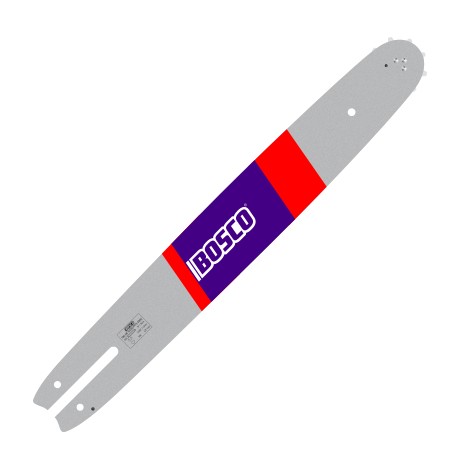

CODE : TBA-GB-12338LPRT9-SW82
LENGTH : 12” – 30cm
GAUGE : 0.50” - 1.3 mm
PITCH : 3/8" mini (LP: Low Profile)
DRIVE LINKS (E) : 44
SPROCKET NOSE # THEET : 9
MOUNTING : SW82– Width (.322"- 8.2mm) - Stihl® 3005 - Oregon® A074/K074
APPROVED TO MACHINES:
Stihl®009, 010, 011, 018, 019, 019T, 020, 020T, 021, 023, 025, E10, E14, E160, E180,

MSE200, MS241, MS200T, MS180, MS191, MS170, MS210, MS211,MS230, MSE140, MS160, MSE170, MSE190, MSE210, MSE230, MS250, MS180, MS192, MS231, MS201

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical with 4 rivets, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.

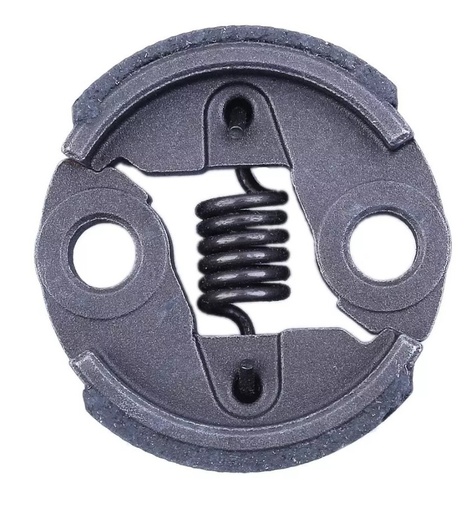

CODE: TB-SPBC-CG2431B-E06
PURPOSE: It is responsible for separating or joining the engine to the transmission through the knurled rod, and allowing the transmission of force to take place or not.
MATERIAL: Metal
SIZE: diameter: 7.7 cm - thickness: 1.4 cm

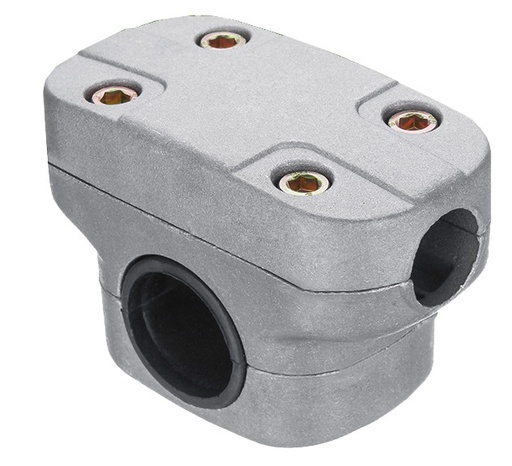

CODE: TB-SPBC-CG2431B-S53
PURPOSE: Allow fixation and rotation of the fork tube
MATERIAL: Aluminum
SIZE: length: 8.9 cm - width: 5.5 cm - height: 6.0 cm - Diameter: 28mm
