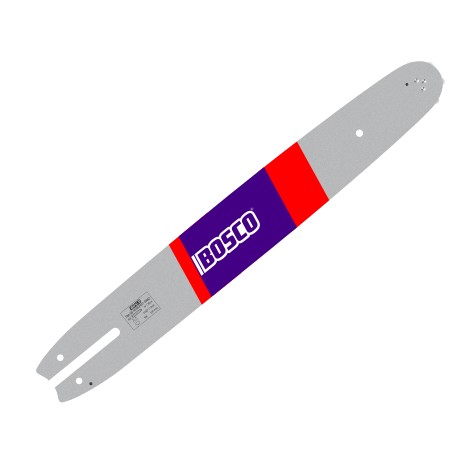

GUIDEBAR SPROCKET TIP 3/8" MINI (E55) - 40cm (16") - 1.1mm (0.043") S

CCODE : TBA-GB-16138LPRT7-SW82
LENGTH : 16” – 40cm
GAUGE : 0.43” - 1.1 mm
PITCH : 3/8" mini (LP: Low Profile)
DRIVE LINKS (E) : 55
SPROCKET NOSE # THEET : 7
MOUNTING : SW82– Width (.322"- 8.2mm) - Stihl® 3005 - Oregon® A074/K074
APPROVED TO MACHINES:
Stihl®HT70, HT75, HT100, HT101, H131, HTE60, 017, 019T, MS190, E140, 023L, 017, 019T, MS190, E140, 023L

MSE140, MSE160, MS170, MSE170, MS171, MSE180, MS181,MSE190, MS191T, MS192, MSE210, MSE230, MS241, MS251, MS193,MSE141

REMARK: For ocassional but experienced users. This guide bar is narrow kerf, symmetrical sprocket nose, it is lightweight for good maneuverability. The tip radio cooperates in the rebound network by offering security. Recommended for saw sizes 2.5 cu.in. (40cc) – 3.5 cu.in. (57cc). Available in lengths 12” – 20”.
